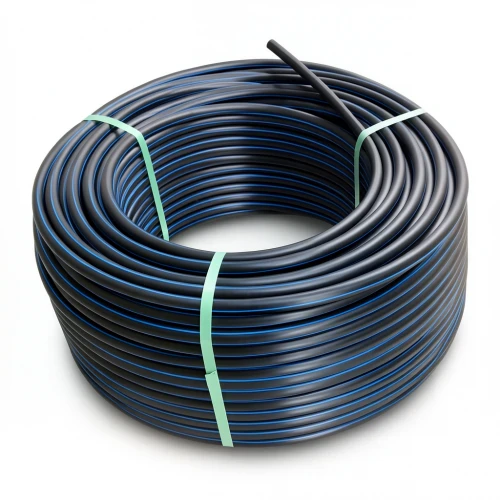

HDPE Plastic Coil Pipe Nominal Pressure 9.9 Bar [PE 100] OD 110 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

Al Mona Factory presents its premium HDPE (high-density polyethylene) coil pipes, engineered to meet the rigorous demands of water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes offer exceptional durability and performance, making them a trusted choice for infrastructure projects in Dubai, Abu Dhabi, and beyond.

Key Features

• Material grade: PE100, ensuring high strength and longevity
• Nominal pressure: 9.9 bar, ideal for high-pressure water systems
• Outside diameter: 110 mm with a standard dimension ratio (SDR) of 13.6
• Wall thickness: 8.1 mm for robust structural integrity
• Minimum required strength (MRS) of 10 MPa and design safety factor of C=1.6
• Black with blue stripes for easy identification
• Available in coils of 100, 200, 300 meters, and up to 1500 meters (for sizes 16-32 mm), and 100-meter coils for sizes 40-160 mm

Applications in the UAE

These HDPE pipes are specifically suited for the UAE's demanding climate and infrastructure needs. Their resistance to UV radiation ensures reliable performance under intense sun exposure, while their flexibility and welded joint strength provide exceptional earthquake resistance—a critical consideration for the region. With a 50-year maintenance-free lifespan, they are an economical and sustainable solution for water supply networks, irrigation systems, and industrial fluid transport. The pipes also withstand chemical corrosion, handling a wide pH range from 2 to 12, making them versatile for various applications.

Choose Al Mona Factory's HDPE coil pipes for superior quality and peace of mind in your next project.
