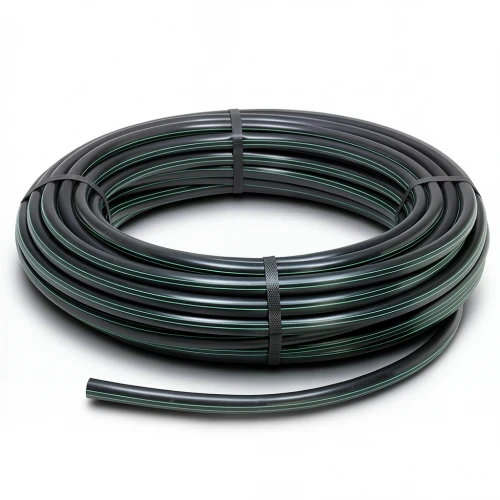

HDPE Plastic Coil Pipe Nominal Pressure 9.8 Bar [PE 63] OD 25 mm SDR 9 Color Black | Almona Factory

Almona Factory presents its high-quality HDPE coil pipes, engineered for reliable performance in demanding irrigation and water supply systems across the United Arab Emirates. Manufactured from high-density polyethylene (PE 63) in accordance with DIN 8074/8075, these pipes offer exceptional durability, chemical resistance, and a maintenance-free service life of up to 50 years.

Designed to withstand high operating pressures, this pipe is rated at 9.8 bar (SDR 9) and is suitable for a wide range of applications, including agricultural irrigation, landscaping, and municipal water networks. Its black color provides UV protection, making it ideal for the intense sun exposure common in the UAE climate.

Key Features

• Outside diameter: 25 mm
• Wall thickness: 2.8 mm
• Weight: 0.200 kg/m
• Standard dimensional ratio: SDR 9
• Nominal pressure: 9.8 bar
• Pipe series (S): 4
• Material grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Length: Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075

Whether you are a contractor working on a large-scale project in Dubai or a farmer in Al Ain, these HDPE coil pipes deliver the strength and longevity required for efficient water transportation. Their flexibility and ease of installation make them a practical choice for projects across the Emirates.
