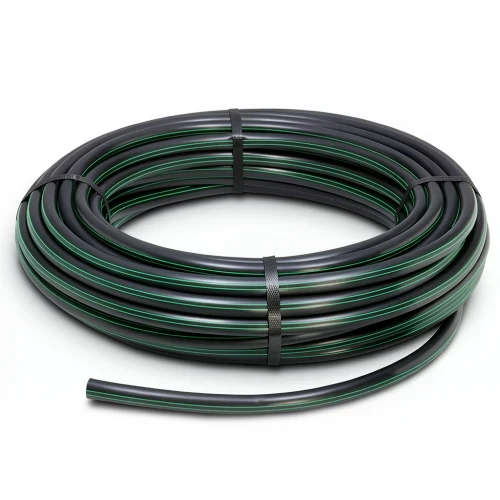

HDPE Plastic Coil Pipe Nominal Pressure 9.8 Bar [PE 63] OD 20 mm SDR 9 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, manufactured by Al Mona Factory in accordance with DIN 8074/8075, is a reliable solution for water transportation networks across the United Arab Emirates. Crafted from high-density polyethylene (PE 63), it offers exceptional durability and performance, making it ideal for pressurized water systems commonly found in Dubai, Abu Dhabi, and other emirates.

Key Features

• Nominal pressure: 9.8 bar
• Outside diameter: 20 mm
• Standard dimension ratio (SDR 9)
• Wall thickness: 2.3 mm
• Material grade: PE 63 with MRS of 6.3 MPa
• Weight: 0.133 kg/m
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
• Available in coils of 100, 200, 300 meters, up to 1500 meters (for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Applications in the UAE

These pipes are engineered to withstand high water pressures, making them suitable for municipal water supply lines, irrigation systems in landscaping projects, and industrial fluid transfer. Their resistance to corrosion and chemicals (pH 2–12) ensures longevity even in harsh environments, while UV resistance and flexibility provide protection against the intense sun and seismic activity. With a maintenance-free lifespan of 50 years, they are a cost-effective choice for infrastructure projects across the region.
