HDPE Plastic Coil Pipe Nominal Pressure 8 Bar [PE 80] OD 125 mm SDR 17 Color Black | Almona Factory

Al-Mona Factory presents high-density polyethylene (HDPE) coil pipes engineered for demanding water transportation networks in the United Arab Emirates. These pipes are manufactured to ISO 4427-2 standards, ensuring consistent quality and performance.

Key Features

• Superior Durability: Made from PE80 grade material, these pipes resist corrosion, chemicals, and harsh environmental conditions, making them ideal for underground installations in the UAE's challenging climate.
• Pressure & Temperature Resistance: Rated for a nominal pressure of 8 bar, they can withstand high temperatures and pressure fluctuations, ensuring long-term reliability.

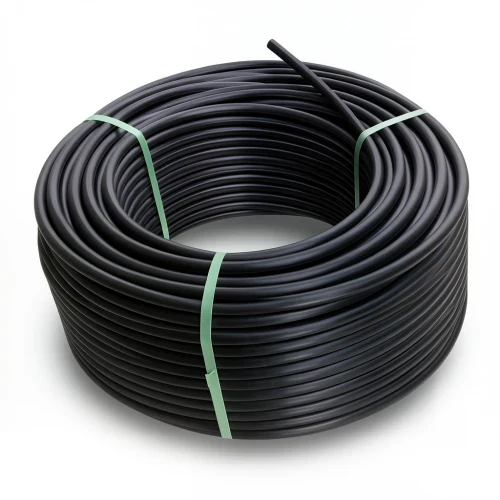

• Easy Handling: Supplied in coils, these pipes are easy to transport and install, reducing labor and logistics costs on your project.
• Versatile Sizing: Available in a range of sizes and coil lengths to suit various project requirements, from small-scale connections to large distribution networks.

Technical Specifications

• Outer Diameter: 125 mm
• Standard Dimension Ratio: SDR 17
• Material Grade: PE 80
• Nominal Pressure: 8 bar
• Wall Thickness: 7.4 mm
• Minimum Required Strength (MRS): 8 MPa
• Design Stress (σs): 6.4 MPa
• Design Safety Factor: C=1.25
• Color: Black

Applications in the UAE

These HDPE coil pipes are suitable for a wide range of applications across Dubai, Abu Dhabi, and other emirates, including potable water distribution, irrigation systems, and industrial fluid transfer. Their resistance to corrosion and abrasion makes them a preferred choice for both above-ground and buried infrastructure projects, ensuring dependable service in the region's high-temperature environment.
