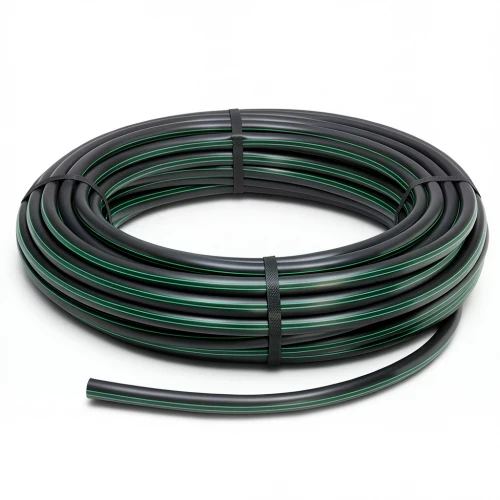

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 80] OD 50 mm SDR 22 Color Black with Green Stripes | Almona Factory

Elevate your water conveyance systems with our premium HDPE coil pipes, meticulously crafted by Almona Factory to meet the rigorous demands of the UAE's infrastructure. These pipes, manufactured in accordance with DIN 8074/8075, are engineered for durability and long-term performance, offering a maintenance-free service life of 50 years.

Designed to withstand high water pressures, they are the go-to choice for municipal and industrial networks across Dubai, Abu Dhabi, and Sharjah. Their exceptional flexibility ensures resilience against seismic activity, while their UV resistance makes them perfect for the intense sun exposure common in the region.

Chemically inert, these pipes resist corrosion from a wide range of substances with a pH range of 2 to 12, ensuring safe and reliable water delivery. Available in convenient coil lengths, they are easy to transport and install, reducing project downtime.

Key Specifications

• Outside Diameter: 50 mm
• Standard Dimension Ratio (SDR): 22
• Pipe Series (S): 10.5
• Material Grade: PE 80
• Nominal Pressure: 6 bar
• Wall Thickness: 2.3 mm
• Minimum Required Strength (MRS): 8 MPa
• Material Weight: 0.361 kg/m
• Design Safety Factor: C=1.25
• Color: Black with green stripes

Available Coil Lengths

• From 100 to 1500 meters for sizes 16 mm to 32 mm
• 100-meter coils for sizes 40 mm to 160 mm

Trust Almona Factory for high-quality piping solutions that keep the UAE's water flowing efficiently.
