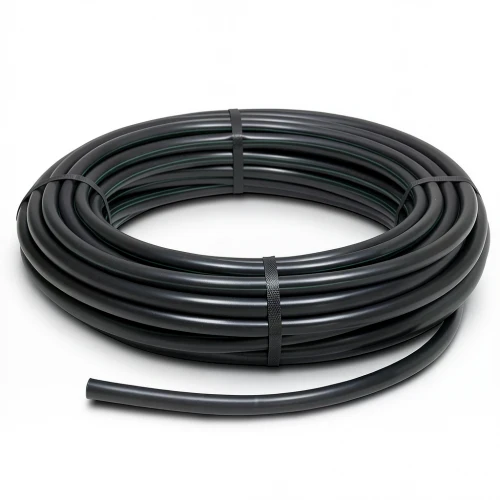

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 80] OD 160 mm Thickness 4 mm Black | Almona Company

This HDPE coil pipe from Al Mona Company is a reliable solution for irrigation and water conveyance projects across the UAE. Manufactured from high-density polyethylene (PE 80), it offers exceptional durability, flexibility, and long-term performance, making it ideal for the region's demanding climate and infrastructure needs.

Key Features

• Nominal pressure: 4 bar
• Outside diameter: 160 mm
• Wall thickness: 4 mm
• Material grade: PE 80 (MRS 8 MPa)
• Standard dimension ratio: SDR 41
• Pipe series (S): 20
• Design stress: 6.4 MPa (safety factor C=1.25)
• Black color for UV resistance
• Manufactured to DIN 8074/8075
• Available in coils: 100m, 200m, 300m up to 1500m (sizes 16-32mm); 100m coils for sizes 40-160mm

Applications in the UAE

Ideal for agricultural irrigation, landscaping, and municipal water supply projects in Dubai, Abu Dhabi, and Sharjah. The pipe's resistance to high temperatures and external factors makes it suitable for underground installations and exposed networks.

With a maintenance-free lifespan of 50 years, this HDPE pipe reduces operational costs and ensures reliable water delivery, even under high-pressure conditions common in large-scale developments.
