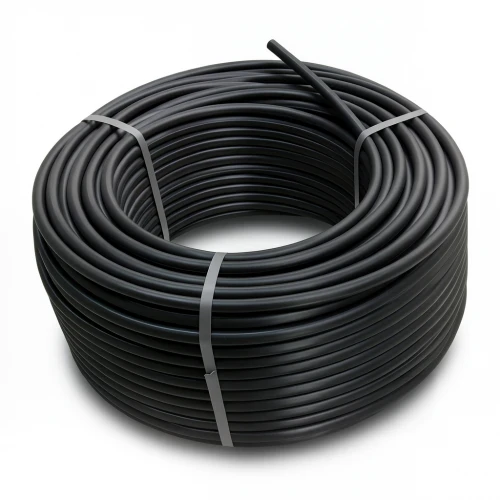

HDPE Plastic Coil Pipe Nominal Pressure 4 Bar [PE 100] OD 63 mm SDR 33 Color Black | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered for reliable water conveyance in the demanding climate of the United Arab Emirates. Manufactured to DIN 8074/8075, these pipes combine high-density polyethylene (PE 100) with a robust 4-bar pressure rating, ensuring dependable performance in municipal water supply, irrigation, and drainage systems from Dubai to Abu Dhabi.

Key Features

• Outside diameter: 63 mm (SDR 33, Pipe Series S 16)
• Material grade: PE 100 with MRS 10 MPa
• Pressure rating: 4 bar, wall thickness 2 mm
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 0.403 kg/m
• Color: Black (UV-resistant)
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Applications in the UAE

Ideal for potable water distribution, agricultural irrigation, sewage and drainage systems, and industrial fluid transport. The pipes' flexibility and resistance to UV radiation make them perfect for above-ground installations exposed to intense sun, while their earthquake-resistant joints ensure durability in seismic zones. With a 50-year maintenance-free lifespan and chemical resistance (pH 2–12), they are a cost-effective, long-term solution for infrastructure projects across the Emirates.
