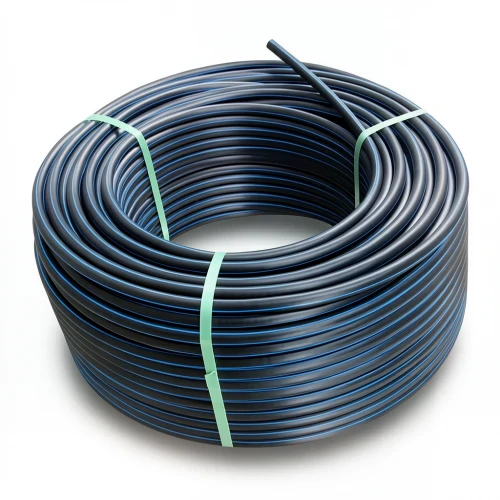

HDPE Plastic Coil Pipe Nominal Pressure 3.2 Bar [PE 100] OD 75 mm SDR 41 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Almona Factory in compliance with DIN 8074/8075, are engineered for reliable water transportation in the UAE's demanding environment. Made from high-density polyethylene (PE100), they offer excellent durability and performance, withstanding high water pressures common in municipal and industrial networks.

With a 50-year maintenance-free lifespan, these pipes reduce long-term operational costs. Their resistance to UV radiation, chemical corrosion (pH 2-12), and seismic activity makes them a preferred choice for the region's harsh climate and infrastructure needs. The flexibility of the pipe and welded joints ensures resilience against ground movement.

Key Specifications

• Outside diameter: 75 mm
• Standard dimension ratio (SDR): 41
• Pipe series (S): 20
• Material grade: PE100
• Nominal pressure: 3.2 bar
• Wall thickness: 1.9 mm
• Minimum required strength (MRS): 10 MPa
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 0.462 kg/m
• Color: Black with blue stripes

Available Lengths

• Coils of 100, 200, 300 meters up to 1500 meters (sizes 16 mm to 32 mm)
• 100-meter coils (sizes 40 mm to 160 mm)

Ideal for water supply projects in Dubai, Abu Dhabi, and Sharjah, these pipes meet the highest quality standards, ensuring efficient and safe water distribution across the UAE.
