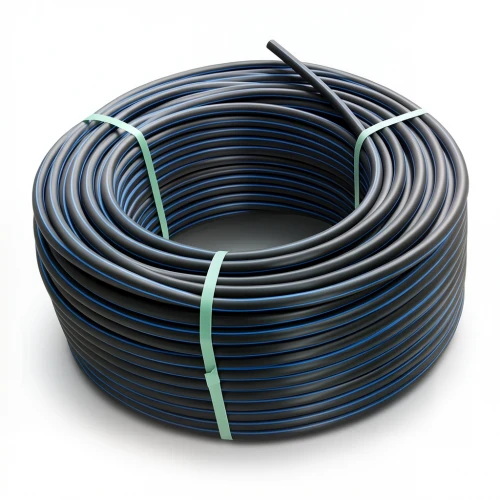

HDPE Plastic Coil Pipe Nominal Pressure 3.2 Bar [PE 100] OD 140 mm SDR 41 Color Black with Blue Stripes | Almona Factory

Introducing our high-quality HDPE plastic coil pipes from Almona Factory, designed to meet the demanding requirements of water transportation networks across the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes offer superior flexibility, making them highly resistant to shocks and seismic activities—a crucial feature in a region prone to occasional tremors.

Our HDPE pipes are crafted from high-density polyethylene (PE 100), ensuring exceptional durability and performance. They can withstand high water pressures, making them ideal for municipal and industrial water supply systems that operate under demanding conditions. With a design life of 50 years free from maintenance, these pipes provide a long-term, cost-effective solution for infrastructure projects in Dubai, Abu Dhabi, and beyond.

These pipes are built to endure the harsh UAE climate, offering excellent resistance to prolonged UV exposure and chemical corrosion. They can safely handle a wide range of chemicals with pH levels between 2 and 12, ensuring versatility across various applications.

Key Features

• Outside diameter: 140 mm
• Standard dimensions ratio (SDR): 41
• Pipe series (S): 20
• Material grade: PE 100
• Nominal pressure: 3.2 bar
• Wall thickness: 3.5 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 1.56 kg/m
• Design safety factor: C=1.6, σs=6.25 MPa
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16-32 mm) and 100-meter coils (for sizes 40-160 mm)

Whether for potable water distribution, irrigation systems, or industrial fluid transport, these HDPE pipes deliver reliable performance and peace of mind. Choose Almona Factory for quality and durability that stands the test of time.
