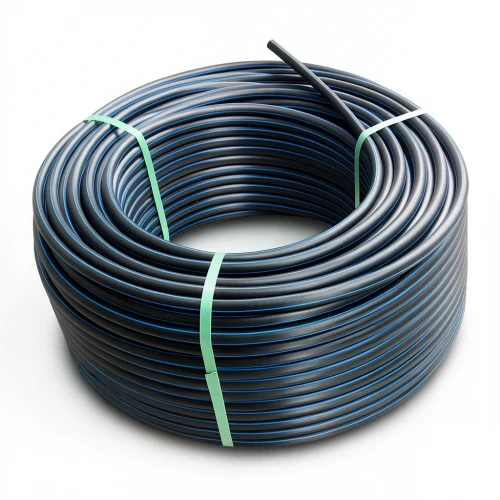

HDPE Plastic Coil Pipe Nominal Pressure 20 Bar [PE 100] OD 50 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Almona Factory presents a premium range of HDPE (high-density polyethylene) coil pipes, manufactured to DIN 8074/8075 standards. These pipes are the go-to solution for water transportation networks across the United Arab Emirates, offering unmatched reliability and performance in demanding conditions.

Key Features

• High pressure rating of 20 bar, ideal for pressurized water systems.
• PE 100 material grade ensures superior strength and durability.
• Outer diameter of 50 mm with SDR 9 and 5.6 mm wall thickness.
• Excellent resistance to UV radiation, harsh desert climates, and temperature variations.
• Chemical resistance to a wide pH range (2 to 12), protecting against corrosion.
• Flexible and lightweight, with earthquake-resistant welded joints.
• Maintenance-free service life of up to 50 years.
• Available in coil lengths from 100 to 1500 meters (depending on size).

Applications in the UAE

These HDPE coil pipes are widely used in municipal water supply, irrigation systems, and industrial fluid transport across Dubai, Abu Dhabi, and Sharjah. Their ability to withstand high pressure and extreme heat makes them a preferred choice for infrastructure projects and agricultural developments throughout the Emirates.

With a design safety factor of C=1.25 and a minimum required strength of 8 MPa, these pipes deliver consistent performance and peace of mind for engineers and contractors.
