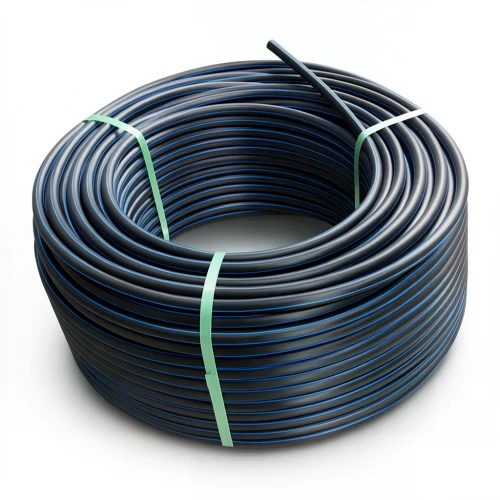

HDPE Plastic Coil Pipe Nominal Pressure 20 Bar [PE 100] OD 16 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its high-density polyethylene (HDPE) coil pipes, engineered to meet the rigorous demands of water transportation networks in the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes deliver exceptional durability and performance, making them a preferred choice for both municipal and private infrastructure projects across Dubai, Abu Dhabi, and the wider region.

Superior Performance and Reliability

These HDPE pipes are designed to withstand high water pressures, ensuring reliable operation even in demanding conditions. With a nominal pressure rating of 20 bar and a minimum required strength of 8 MPa, they provide a long service life of over 50 years with minimal maintenance. The material's inherent flexibility also offers excellent resistance to seismic activity, a crucial attribute for the UAE's dynamic environment.

Resistance to Harsh Conditions

The pipes offer outstanding protection against external factors, including prolonged exposure to UV radiation, making them suitable for above-ground installations under the intense UAE sun. Additionally, they resist chemical corrosion across a wide pH range (2 to 12), ensuring compatibility with various water qualities and industrial fluids.

Key Specifications

• Outside diameter: 16 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Material grade: PE 100
• Nominal pressure: 20 bar
• Wall thickness: 2 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 0.092 kg/m
• Design safety factor: C=1.25
• Color: Black with blue stripes
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Ideal for water supply networks, irrigation systems, and industrial applications, these HDPE coil pipes combine quality, durability, and cost-effectiveness, ensuring dependable performance for projects throughout the UAE.
