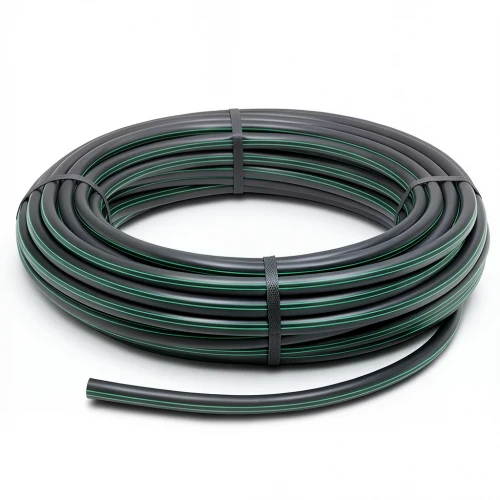

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 50 mm SDR 9 Color Black with Green Stripes | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered for demanding water transportation systems across the UAE. Manufactured in accordance with DIN 8074/8075, these pipes combine high-density polyethylene (PE 80) with a robust 16-bar pressure rating, ensuring reliable performance in both residential and commercial projects.

Key Features

• Outside diameter: 50 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Material grade: PE 80
• Nominal pressure: 16 bar
• Wall thickness: 5.6 mm
• Minimum required strength (MRS): 8 MPa
• Weight: 0.788 kg/m
• Design safety factor: C = 1.25
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Durability and Performance

These HDPE pipes offer an exceptional lifespan of up to 50 years with virtually no maintenance, making them a cost-effective choice for long-term infrastructure. Their resistance to UV radiation ensures they can withstand the intense sun exposure common in the UAE climate, while their flexibility provides excellent seismic resilience—a crucial factor given the region's geological considerations.

Chemical Resistance

The pipes are highly resistant to chemical corrosion, capable of handling a wide range of substances with pH levels from 2 to 12. This makes them suitable for various industrial applications beyond just potable water, including wastewater and chemical transfer.

Applications in the UAE

From Dubai's high-rise plumbing systems to Abu Dhabi's municipal water networks, these HDPE coil pipes are a trusted solution for contractors and engineers. Their ease of installation and low friction loss make them ideal for both underground and above-ground installations, ensuring efficient water delivery across the Emirates.
