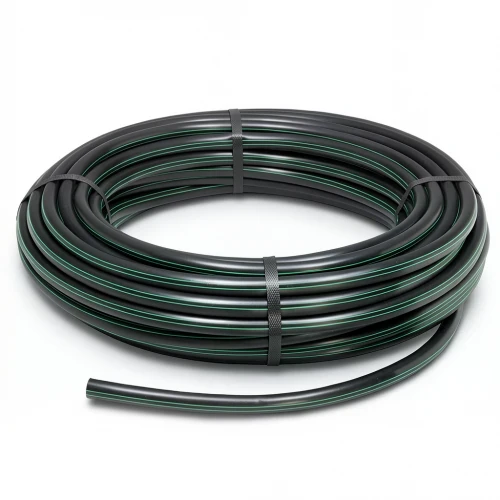

HDPE Plastic Coil Pipe Nominal Pressure 15.9 Bar [PE 63] OD 50 mm SDR 7.4 Color Black with Green Stripes | Almona Factory

Engineered for reliable performance in the demanding climate of the United Arab Emirates, these HDPE coil pipes from Al Mona Factory are the ideal solution for water transportation networks. Manufactured in accordance with DIN 8074/8075, they combine robustness with flexibility, ensuring long-lasting service even under high pressure and extreme temperatures.

These pipes are designed to withstand the harsh conditions common in the region, from intense UV exposure to seismic activity. Their high flexibility allows for easy installation and resistance to ground movement, while their chemical resistance (pH 2-12) makes them suitable for a wide range of applications.

Key Features

• Nominal pressure: 15.9 bar
• Outside diameter: 50 mm
• Standard dimension ratio (SDR): 7.4
• Pipe series (S): 3.2
• Material grade: PE 63
• Wall thickness: 6.9 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 0.936 kg/m
• Design safety factor: C=1.25 (σs = 5.04 MPa)
• Color: Black with green stripes
• Available in coils of 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm; 100 m coils for sizes 40-160 mm)

With a maintenance-free lifespan of 50 years, these pipes offer an economical and dependable choice for potable water, irrigation, and industrial applications across Dubai, Abu Dhabi, and the wider UAE.
