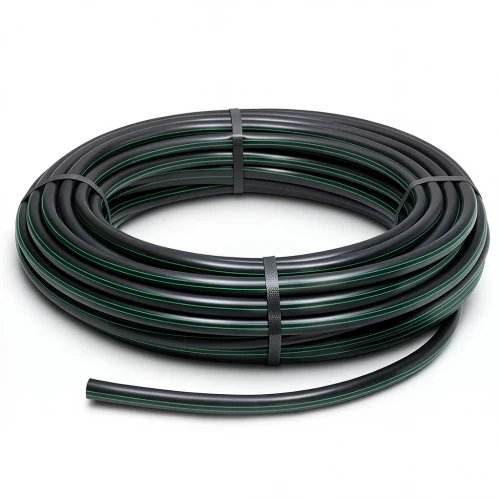

HDPE Plastic Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 50 mm SDR 6 Color Black with Green Stripes | Almona Factory

Our HDPE (High-Density Polyethylene) coil pipes, manufactured by Al Mona Factory in compliance with DIN 8074/8075, are the ideal solution for water transportation networks across the UAE. Designed to handle high pressures and harsh environmental conditions, these pipes offer unmatched durability and long-term performance.

Key Features

• Withstands high water pressure (15.7 bar) for demanding applications
• 50-year maintenance-free service life, reducing operational costs
• Superior resistance to UV radiation, perfect for exposed installations in the UAE climate
• High flexibility in pipes and welded joints provides earthquake resistance
• Chemical corrosion resistance across a pH range of 2 to 12
• Complies with DIN 8074/8075 standards for quality and reliability

Specifications

• Outside diameter: 50 mm
• Standard Dimension Ratio (SDR): 6
• Pipe Series (S): 2.5
• Material Grade: PE 63
• Pressure Rating: 15.7 bar
• Wall Thickness: 8.3 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Weight: 1.09 kg/m
• Design Safety Factor: C=1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
• Available lengths: Coils from 100 m to 1500 m (for diameters 16 mm to 32 mm); 100 m coils for diameters 40 mm to 160 mm

Applications in the UAE

These pipes are widely used in municipal water supply networks, irrigation systems, and industrial fluid transport across Dubai, Abu Dhabi, and other emirates. Their resistance to high pressure and environmental stress makes them a reliable choice for both underground and above-ground installations, ensuring efficient water delivery in the UAE's demanding climate.
