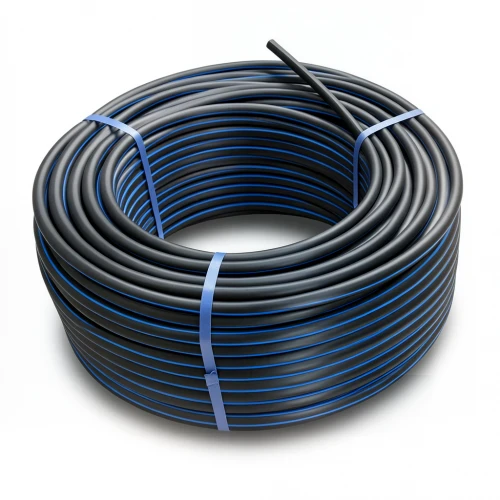

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] OD 75 mm SDR 9 Color Black with Blue Stripes | Almona Factory

These HDPE (high-density polyethylene) coil pipes from Almona Factory are engineered for reliable water transportation networks across the UAE. Manufactured in accordance with DIN 8074/8075, they offer exceptional durability and performance, making them ideal for demanding applications in Dubai, Abu Dhabi, and other emirates.

With a PE 100 material grade and a nominal pressure of 15.6 bar, these pipes withstand high water pressures, ensuring a long service life of up to 50 years with minimal maintenance. Their flexibility and resistance to earthquakes and ground movements make them a preferred choice for infrastructure projects in the region.

These pipes provide superior protection against ultraviolet radiation, chemical corrosion, and a wide pH range (2 to 12), ensuring reliable operation in harsh environmental conditions. Their lightweight design simplifies handling and installation, reducing labor and equipment costs.

Key Features

• Outside diameter: 75 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Material grade: PE 100
• Nominal pressure: 15.6 bar
• Wall thickness: 8.4 mm
• Minimum required strength (MRS): 10 MPa
• Material weight: 1.78 kg/m
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Available in coil lengths: 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Ideal for water supply networks, irrigation systems, and industrial applications, these HDPE coil pipes offer a cost-effective and long-lasting solution for projects throughout the UAE.
