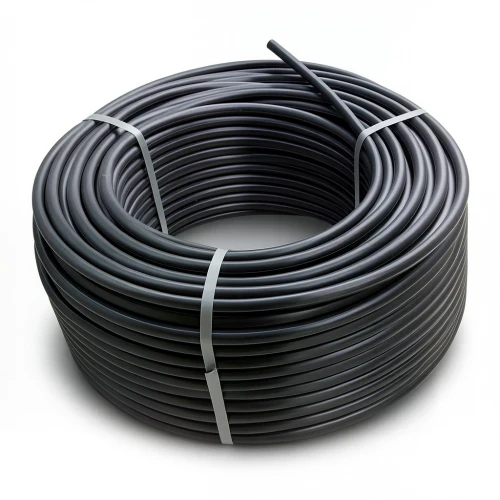

HDPE Plastic Coil Pipe Nominal Pressure 15.6 Bar [PE 100] OD 50 mm SDR 9 Color Black | Almona Factory

Engineered for the demanding conditions of the UAE's water infrastructure, these HDPE coil pipes from Almona Factory deliver exceptional performance and longevity. Manufactured to DIN 8074/8075 standards, they are the preferred choice for efficient liquid transportation in residential, commercial, and agricultural projects across Dubai, Abu Dhabi, and the wider Emirates.

Thanks to their high-density polyethylene (PE 100) construction, these pipes withstand high water pressures, making them ideal for networks subject to significant stress. With a design life of 50 years free from maintenance, they offer a long-term, cost-effective solution. Their superior resistance to UV radiation ensures reliable performance under the intense sun of the UAE, while their flexibility provides excellent earthquake resistance, a crucial feature for the region's construction standards.

These pipes also offer outstanding chemical corrosion resistance, handling a wide pH range from 2 to 12, making them suitable for various industrial and irrigation applications. Available in coil lengths from 100 to 1500 meters for sizes 16-32 mm, and 100-meter coils for sizes 40-160 mm, they provide flexible installation options to meet project requirements.

Key Specifications

• Outside Diameter: 50 mm
• Standard Dimension Ratio (SDR): 9
• Pipe Series (S): 4
• Material Grade: PE 100
• Nominal Pressure: 15.6 bar
• Wall Thickness: 5.6 mm
• Minimum Required Strength (MRS): 10 MPa
• Weight: 0.796 kg/m
• Design Safety Factor: C=1.6 (σs = 6.25 MPa)
• Color: Black
• Length: Coils (100m, 200m, 300m up to 1500m) for sizes 16-32mm; 100m coils for sizes 40-160mm

Ideal for water supply networks, irrigation systems, and industrial fluid transport, these HDPE pipes are a reliable choice for projects across the UAE, ensuring durable and efficient operation.
