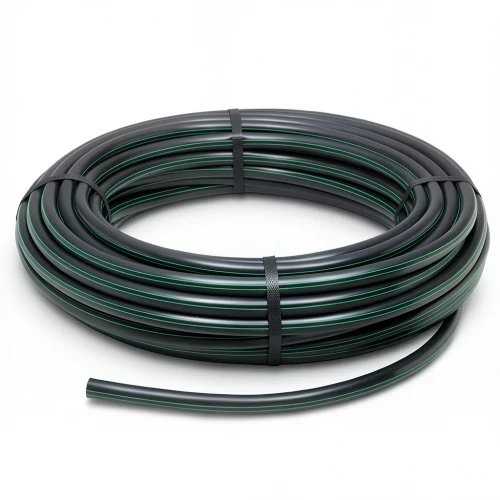

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 80] OD 25 mm SDR 11 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE coil pipes, engineered for high-performance water transportation in the demanding climate of the United Arab Emirates. Manufactured to DIN 8074/8075 standards, these pipes deliver exceptional durability and a maintenance-free service life of up to 50 years, making them a smart investment for infrastructure projects in Dubai, Abu Dhabi, and across the Emirates.

Key Features

• Material: PE80 high-density polyethylene
• Nominal pressure: 12.5 bar
• Outside diameter: 25 mm
• Standard dimension ratio: SDR 11
• Pipe series: S 5
• Wall thickness: 2.3 mm
• Minimum required strength (MRS): 8 MPa
• Design safety factor: C = 1.25
• Weight: 0.171 kg/m
• Color: Black with green stripes
• Available in coils of 100 m, 200 m, 300 m, up to 1500 m (sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Applications in the UAE

These pipes are ideal for potable water distribution, irrigation systems, and industrial fluid transfer in the UAE's harsh desert environment. Their resistance to UV radiation and chemical corrosion (pH 2–12) ensures long-term performance in both above-ground and buried installations. The flexibility of HDPE provides excellent seismic resilience, a critical advantage in a region with occasional seismic activity.

Choose Al Mona Factory for high-quality, cost-effective piping solutions that meet international standards and are readily available for projects across the Emirates.
