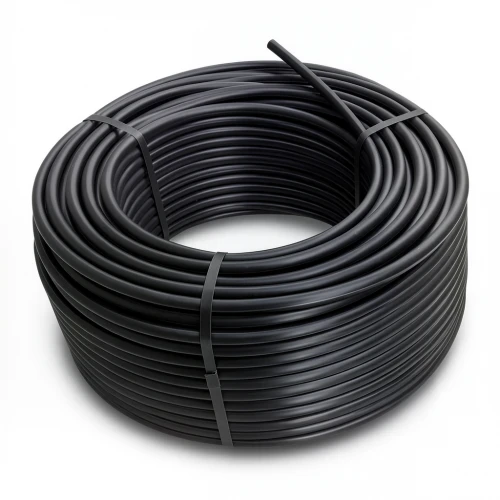

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] Outside Diameter 32 mm SDR 11 Color Black | Almona Factory

Enhance your water infrastructure with this premium HDPE coil pipe from Almona Factory, crafted from high-density polyethylene (PE 100) to deliver exceptional durability and performance. Designed for efficient liquid transportation, this pipe meets the rigorous demands of the UAE's arid climate and fast-paced construction sector.

Key Features

• Material: PE 100 grade, ensuring high strength and long-term reliability
• Pressure rating: 12.5 bar, ideal for high-pressure water networks
• Outside diameter: 32 mm with SDR 11 (standard dimension ratio)
• Wall thickness: 3 mm, providing robust structural integrity
• Minimum required strength (MRS): 10 MPa, with a design safety factor of C=1.6 (σs = 6.25 MPa)
• Weight: 0.282 kg/m, easy to handle and install
• Color: Black, offering UV resistance for extended outdoor exposure
• Length: Available in coils from 100 to 1500 meters for sizes 16-32 mm, and 100-meter coils for sizes 40-160 mm
• Lifespan: Over 50 years with minimal maintenance

Applications in the UAE

From Dubai's high-rise plumbing systems to Abu Dhabi's municipal water supply, this HDPE pipe excels in hydraulic, irrigation, ventilation, heating, and cooling applications. Its flexibility and resistance to earthquakes and chemical corrosion (pH 2-12) make it a trusted choice for projects across the Emirates, ensuring reliable performance in extreme heat and demanding conditions.

Produced according to DIN 8074/8075 standards, this pipe offers superior protection against external factors, including prolonged UV exposure, and is a cost-effective solution for long-term infrastructure needs.
