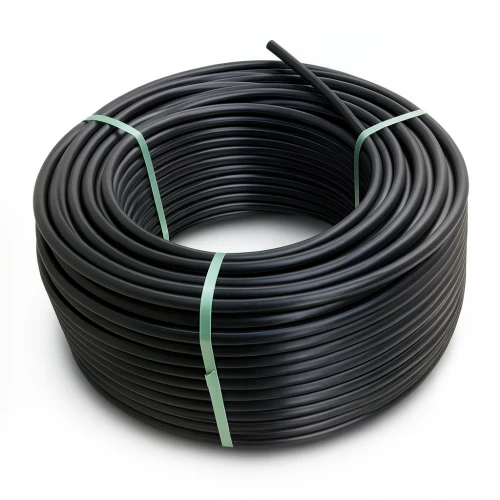

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 32 mm SDR 13.6 Color Black | Almona Factory

This HDPE coil pipe from Al-Mona Factory is engineered for water transportation networks across the UAE, from residential developments in Dubai to municipal projects in Abu Dhabi and Sharjah. Made from high-density polyethylene (PE100), it offers exceptional strength, durability, and resistance to corrosion and rust, ensuring a long service life even in harsh desert conditions.

The pipe is manufactured to ISO 4427-2 standards, with a nominal pressure of 12.5 bar and a standard dimensional ratio (SDR) of 13.6. Its smooth inner surface minimizes friction losses, improving flow efficiency in irrigation and water supply systems. The black color provides UV resistance, making it suitable for above-ground installations common in the region.

Key Features

• Material: High-density polyethylene (PE100)
• Outside diameter: 32 mm
• Wall thickness: 2.4 mm
• Standard dimensional ratio: SDR 13.6
• Nominal pressure: 12.5 bar
• Pipe series (S): 6.3
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Length: Available in coils from 100 m to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm
• Manufactured according to ISO 4427-2

Ideal for potable water supply, irrigation, and underground piping, this HDPE coil pipe combines flexibility with high pressure resistance, simplifying installation in tight spaces and reducing the need for fittings.
