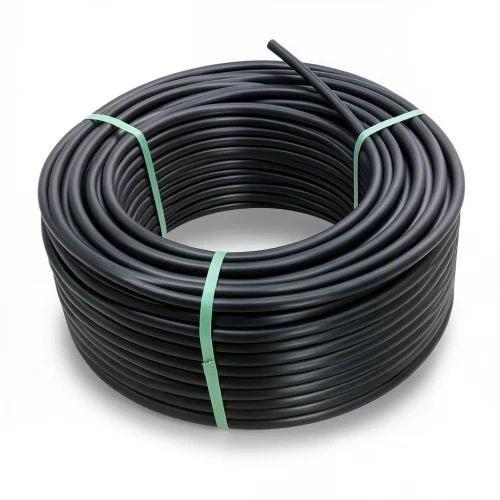

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 20 mm SDR 11 Color Black | Almona Factory

Almona Factory presents a premium HDPE (high-density polyethylene) coil pipe engineered for reliable water distribution networks across the United Arab Emirates. Manufactured to DIN 8074/8075 standards, this PE 100 grade pipe delivers exceptional strength and longevity, making it a top choice for both potable water and industrial applications in the region's demanding climate.

Key Features

• Nominal pressure: 12.5 bar
• Outside diameter: 20 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 100 (MRS 10 MPa)
• Wall thickness: 2 mm
• Design safety factor: C=1.6 (σs = 6.25 MPa)
• Weight: 0.118 kg/m
• Color: Black
• Length: Coils from 100 m to 1500 m (for 16–32 mm sizes); 100 m coils for 40–160 mm sizes

Performance and Durability

This HDPE pipe is built to withstand harsh environmental conditions, including intense UV exposure and high temperatures common in the UAE. It offers a maintenance-free service life of 50 years, thanks to its resistance to corrosion, chemical attack (pH range 2–12), and seismic stress due to its flexibility and strong welded joints. These properties ensure uninterrupted performance in water networks under high pressure.

Applications in the UAE

Ideal for municipal water supply lines, irrigation systems, and industrial fluid transport across Dubai, Abu Dhabi, and Sharjah, this pipe is suitable for both above-ground and buried installations, providing a cost-effective and long-lasting solution for infrastructure projects.
