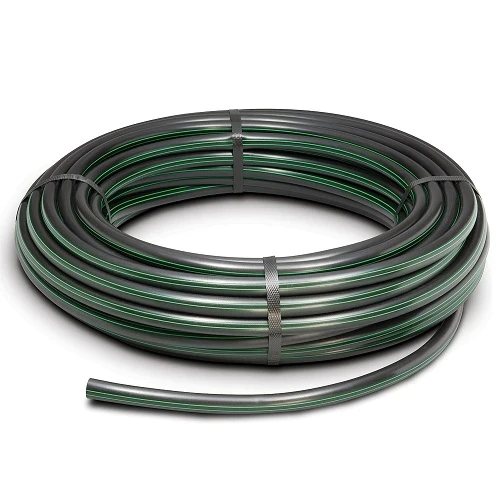

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 80] Outside Diameter 75 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

Al Mona Factory presents its premium HDPE (High-Density Polyethylene) coil pipes, engineered to meet the rigorous demands of water transportation networks in the United Arab Emirates. Manufactured in accordance with DIN 8074/8075, these pipes offer exceptional durability and performance, making them a preferred choice for both potable water and irrigation systems across Dubai, Abu Dhabi, and the Northern Emirates.

These HDPE pipes are designed to withstand high water pressure and harsh environmental conditions, including extreme heat and UV exposure common in the UAE climate. With a remarkable 50-year maintenance-free lifespan, they provide a cost-effective and reliable solution for long-term infrastructure projects. Their flexibility and resistance to seismic activity ensure integrity even in challenging soil conditions, while their chemical resistance (pH 2-12) makes them suitable for a wide range of industrial applications.

Key Features

• Material Grade: PE 80 (High-Density Polyethylene)
• Nominal Pressure: 10 bar
• Outside Diameter: 75 mm
• Standard Dimension Ratio: SDR 13.6
• Pipe Series (S): 6.3
• Wall Thickness: 5.6 mm
• Minimum Required Strength (MRS): 8 MPa
• Design Safety Factor: C = 1.25
• Weight: 1.24 kg/m
• Color: Black with green stripes
• Available in coils: 100m, 200m, 300m up to 1500m (sizes 16mm to 32mm); 100m coils for sizes 40mm to 160mm

Ideal for water supply networks, sewage systems, and agricultural irrigation projects, these HDPE pipes are available in various sizes to suit your specific requirements. Trust Al Mona Factory for high-quality piping solutions that deliver excellence across the UAE.
