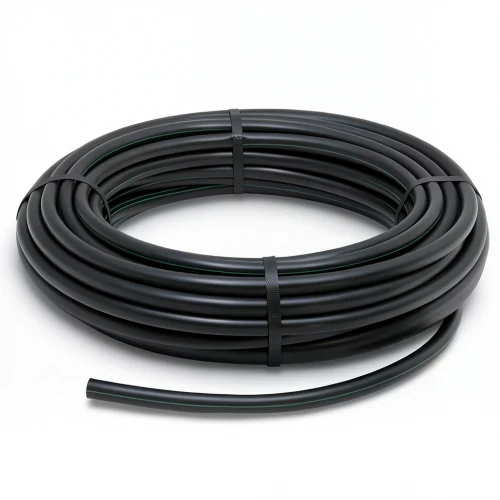

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 75 mm SDR 11 Color Black | Almona Factory

Al Mona Factory presents its premium HDPE coil pipes, engineered for demanding irrigation and water transfer applications across the United Arab Emirates. Manufactured from high-density polyethylene (PE 63), these pipes combine exceptional strength with remarkable flexibility, making them a reliable choice for both agricultural and municipal projects.

Designed to withstand high operating pressures, these pipes are ideal for water networks that experience significant stress. With a minimum required strength of 6.3 MPa and a design safety factor of C=1.25, they offer long-term durability and peace of mind. Their 50-year maintenance-free service life reduces operational costs and ensures uninterrupted performance.

The pipes feature a smooth internal surface that minimizes friction losses, enhancing flow efficiency. Their lightweight nature simplifies handling and installation, reducing labor and equipment requirements compared to traditional metal pipes. Additionally, they are highly resistant to corrosion, chemicals, and UV radiation, making them suitable for the harsh UAE climate.

Key Specifications

• Outside Diameter: 75 mm
• Wall Thickness: 6.8 mm
• Weight: 1.47 kg/m
• Standard Dimension Ratio: SDR 11
• Nominal Pressure: 10 bar
• Pipe Series (S): 5
• Material Grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design Stress (σs): 5.04 MPa
• Design Safety Factor: C=1.25
• Manufactured according to DIN 8074/8075

Available Lengths

• Coils of 100, 200, 300, up to 1500 meters for sizes 16 mm to 32 mm
• 100-meter coils for sizes 40 mm to 160 mm

Whether you are developing a new irrigation system in Dubai, upgrading water supply lines in Abu Dhabi, or managing industrial projects in Sharjah, these HDPE pipes deliver the performance and reliability you need.
