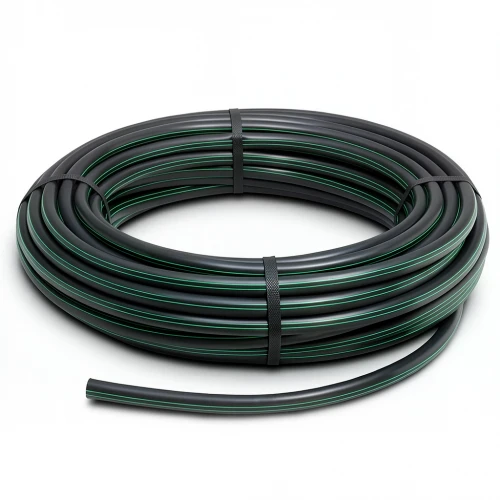

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 32 mm SDR 11 Color Black with Green Stripes | Almona Factory
(6 Product Views)
High-density polyethylene (HDPE) coil pipe from Al Mona Factory, PE 63 grade, 10 bar pressure rating, 32 mm outside diameter, SDR 11, black with green stripes. Ideal for water supply, irrigation, and drainage systems across the UAE.
in stock
Product description
These HDPE (high-density polyethylene) coil pipes, manufactured by Al Mona Factory in compliance with DIN 8074/8075, offer a robust and long-lasting solution for fluid conveyance in the demanding climate of the United Arab Emirates. Their superior durability and performance make them a preferred choice for infrastructure projects across Dubai, Abu Dhabi, and the wider region.
Key Features
- High pressure resistance: Rated for 10 bar, suitable for high-pressure water networks.
- Long service life: Designed for 50 years of maintenance-free operation.
- UV resistance: Can withstand prolonged exposure to sunlight, ideal for outdoor installations in the UAE's sunny environment.
- Earthquake resistant: High flexibility of pipes and welded joints provides excellent seismic performance.
- Chemical corrosion resistance: Withstands a wide range of chemicals with pH levels from 2 to 12.
- Material grade: PE 63 with a Minimum Required Strength (MRS) of 6.3 MPa.
- Dimensions: Outside diameter 32 mm, wall thickness 2.9 mm, SDR 11 (Standard Dimension Ratio).
- Weight: 0.272 kg per meter.
- Design safety factor: C=1.25, with a design stress (ฯs) of 5.04 MPa.
- Color: Black with green stripes for easy identification.
- Available in coil lengths of 100, 200, 300 meters, and up to 1500 meters for sizes 16 mm to 32 mm. For sizes 40 mm to 160 mm, coils are 100 meters long.
Applications in the UAE
These HDPE pipes are versatile and can be used in various applications, including:
- Water supply networks for residential, commercial, and industrial projects.
- Irrigation systems for landscaping and agriculture, crucial for the UAE's green initiatives.
- Sewage and drainage systems, ensuring reliable waste management.
- Infrastructure projects requiring durable and flexible piping solutions.
Manufactured to the highest quality standards, these pipes provide an efficient and cost-effective solution for your fluid transport needs.
