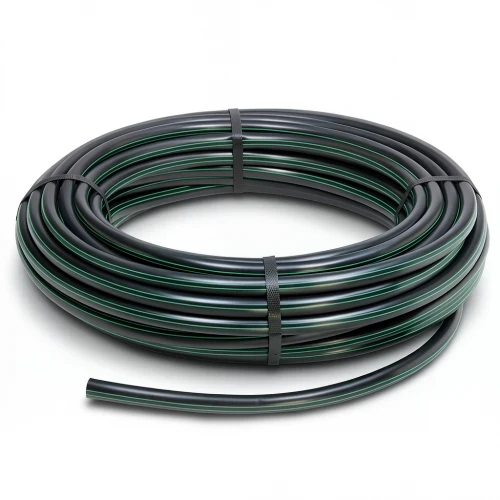

HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 110 mm SDR 11 Color Black with Green Stripes | Almona Factory

Overview

These HDPE coil pipes, manufactured by Almona Factory, are engineered for reliable water transportation networks across the UAE. Made from high-density polyethylene (PE 63), they offer exceptional durability and performance, even under the demanding conditions of the region's climate.

Key Features

• Nominal pressure: 10 bar
• Outside diameter: 110 mm
• Standard dimension ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 63
• Wall thickness: 10 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Weight: 3.14 kg/m
• Design safety factor: C=1.25, σs=5.04 MPa
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 up to 1500 meters (for sizes 16-32 mm), and 100-meter coils for sizes 40-160 mm

Applications in the UAE

Ideal for potable water distribution, irrigation systems, and industrial fluid transfer in Dubai, Abu Dhabi, and Sharjah. The pipes withstand high water pressure, UV exposure, and seismic activity, ensuring long-term reliability with a 50-year maintenance-free lifespan. They resist chemical corrosion across a pH range of 2 to 12, making them suitable for various applications.

Manufactured in compliance with DIN 8074/8075, these pipes deliver superior performance in the UAE's challenging environment.
