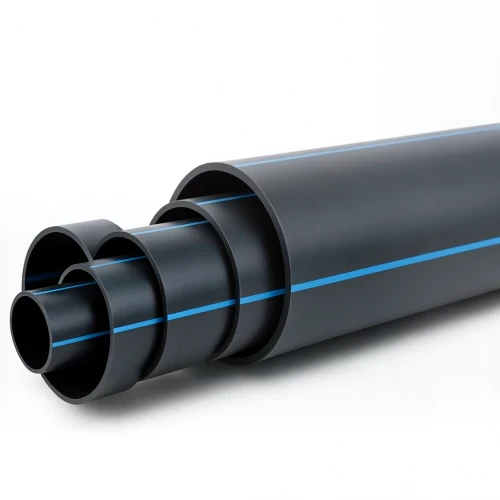

HDPE Pipe Nominal Pressure 12.5 Bar [PE 100] OD 500 mm SDR 11 Color Black with Blue Stripes | Almona Factory

Engineered for the rigorous demands of the United Arab Emirates, this HDPE pipe from Almona Factory delivers exceptional performance in water transportation networks. Manufactured in accordance with DIN 8074/8075, this high-density polyethylene (PE 100) pipe combines durability, flexibility, and long-term reliability, making it a preferred choice for infrastructure projects in Dubai, Abu Dhabi, and across the Emirates.

Key Features

• High pressure rating of 12.5 bar, suitable for pressurized water systems
• PE 100 material grade ensures high strength and resistance to slow crack growth
• Standard dimension ratio (SDR 11) with a wall thickness of 45.4 mm
• Outer diameter of 500 mm, pipe series S=5
• Minimum required strength (MRS) of 10 MPa, design safety factor C=1.6, and design stress σs = 6.25 MPa
• Weighs 65.2 kg/m, offering a robust yet manageable solution
• Black with blue stripes for easy identification
• Available in 12-meter lengths (custom lengths on request)

Applications in the UAE

These pipes are ideal for potable water transmission, irrigation systems, and industrial fluid handling across the UAE. Their resistance to high pressure and harsh climatic conditions—including intense UV exposure and temperature fluctuations—makes them a reliable choice for both above-ground and buried installations. With a maintenance-free service life of 50 years, they reduce lifecycle costs for municipalities and private developers in Dubai, Abu Dhabi, Sharjah, and beyond.

Durability and Safety

HDPE pipes offer superior protection against external factors, including UV radiation and seismic activity, thanks to their flexibility and welded joint integrity. They also resist chemical corrosion across a pH range of 2 to 12, ensuring safe transport of various fluids. This combination of strength and resilience makes them a cornerstone of modern infrastructure in the Emirates.
