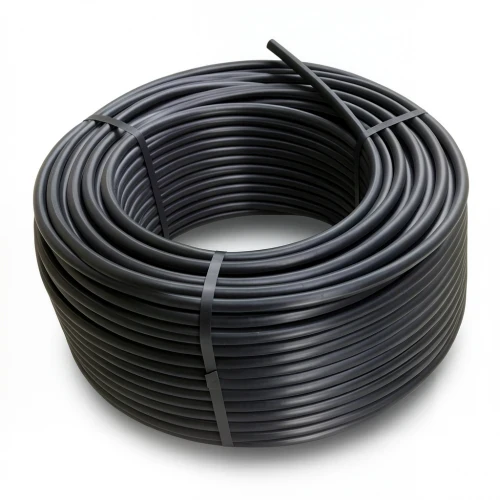

HDPE Coil Pipe Working Pressure 20 Bar [PE 100] Outer Diameter 40 mm SDR 9 Color Black | Almona Company

These HDPE coil pipes from Almona Company are engineered for reliable water transportation networks, meeting the rigorous demands of the UAE's infrastructure and construction sectors. Manufactured from high-density polyethylene (PE100), they offer outstanding strength, durability, and resistance to corrosion, ensuring long service life even in harsh desert climates and high-temperature environments.

Key Features

• Working pressure: 20 bar (PN 20)
• Standard dimensional ratio: SDR 9
• Outer diameter: 40 mm, wall thickness: 4.5 mm
• Material grade: PE100 with minimum required strength (MRS) of 10 MPa
• Design stress: 8 MPa with safety factor C=1.25
• Available in black color
• Manufactured according to ISO 4427-2
• Coil lengths: 100 meters for 40 mm size (up to 160 mm), and up to 1500 meters for smaller sizes (16-32 mm)

Applications in the UAE

Ideal for potable water supply lines, irrigation systems, and industrial water transfer projects across Dubai, Abu Dhabi, Sharjah, and other emirates. The flexibility and long coil lengths reduce the need for joints, speeding up installation and minimizing leak points—perfect for rapid urban development and infrastructure projects.
