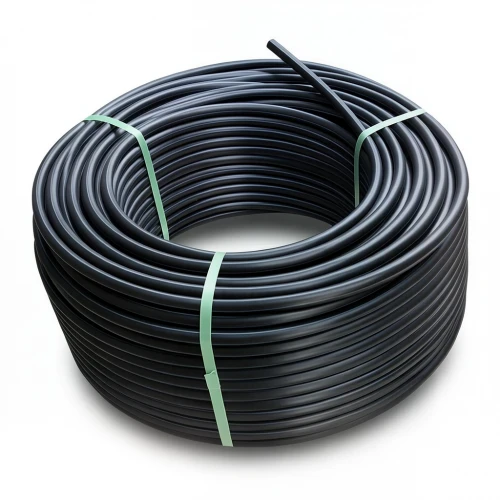

HDPE Coil Pipe PN 8 Bar [PE 80] OD 75 mm SDR 17 Color Black | Almona Factory

These HDPE pipe coils, manufactured by Al-Mona Factory in accordance with ISO 4427-2, provide a reliable and long-lasting solution for water transportation networks in the UAE. Crafted from high-density polyethylene (PE 80), they offer exceptional strength, durability, and resistance to high temperatures and pressure, ensuring dependable performance in the region's demanding climate.

Key Features

• Outer diameter: 75 mm
• Standard Dimension Ratio (SDR): 17
• Material grade: PE 80
• Pressure rating: 8 bar
• Wall thickness: 4.5 mm
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor (C): 1.25
• Color: black
• Available in coils of 100, 200, 300 meters and up to 1500 meters for sizes 16 mm to 32 mm; and 100-meter coils for sizes 40 mm to 160 mm

Applications in the UAE

These pipes are well-suited for potable water distribution, irrigation systems, and industrial applications across Dubai, Abu Dhabi, and other emirates. Their flexibility and ease of installation reduce labor costs and time, especially in challenging terrains common in the region.

Why Choose HDPE?

• Chemical and corrosion resistance
• Lightweight and easy to transport and handle
• Long service life with minimal maintenance
• Safe for potable water applications
