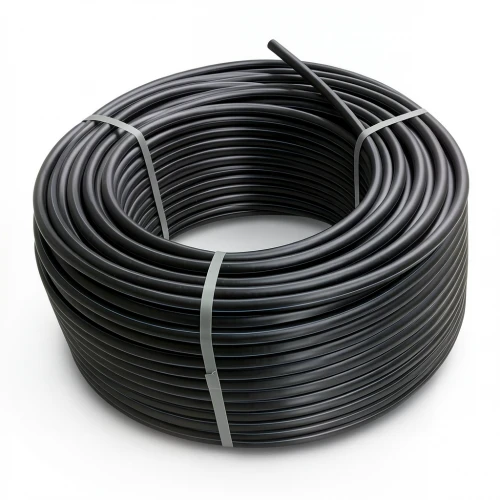

HDPE Coil Pipe PN 5 Bar [PE 80] Outside Diameter 90 mm SDR 26 Color Black | Almona Factory
(8 Product Views)
High-density polyethylene (HDPE) pipe coils from Al-Mona Factory, rated PN 5 bar with a 90 mm outer diameter, engineered for reliable water distribution across the UAE.
in stock
Product description
Al-Mona Factory presents premium HDPE pipe coils, meticulously manufactured to meet the rigorous demands of water transportation networks in the United Arab Emirates. These pipes, produced in accordance with ISO 4427-2, offer exceptional durability and performance, making them the ideal choice for infrastructure projects across Dubai, Abu Dhabi, and the wider region.
Key Features & Benefits
- Superior Material: Crafted from high-density polyethylene (PE 80), these pipes provide outstanding strength and resistance to corrosion, chemicals, and UV radiationโperfect for the UAE's harsh climate.
- Robust Performance: With a pressure rating of 5 bar, an SDR 26 dimension ratio, and a wall thickness of 3.5 mm, they are engineered for reliable service in demanding applications.
- Long-Lasting Durability: Designed to withstand high temperatures and pressure, ensuring a long service life and minimal maintenance.
- Flexible & Convenient: Supplied in coils for easy handling and installation, reducing the need for joints and fittings.
- Versatile Applications: Ideal for water supply lines, irrigation systems, and other infrastructure projects throughout the Emirates.
Technical Specifications
- Outside Diameter: 90 mm
- Standard Dimension Ratio: SDR 26
- Material Grade: PE 80
- Pressure Rating: 5 bar
- Wall Thickness: 3.5 mm
- Minimum Required Strength (MRS): 8 MPa
- Design Stress (ฯs): 6.4 MPa
- Design Safety Factor: C=1.25
- Color: Black
Available in coils of 100 meters for sizes 40 mm to 160 mm, these pipes offer a dependable solution for both above-ground and underground installations. Choose Al-Mona Factory for high-quality HDPE piping that meets international standards and supports the UAE's growing infrastructure needs.
