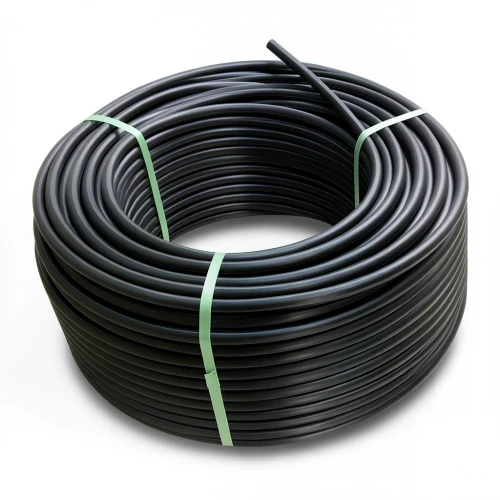

HDPE Coil Pipe PN 16 Bar [PE 80] OD 40 mm SDR 9 Color Black | Almona Factory
(30 Product Views)
High-density polyethylene (HDPE) pipe coils from Al-Mona Factory, rated PN 16 bar with a 40 mm outer diameter and SDR 9, ideal for water supply and irrigation systems across the UAE.
in stock
Product description
These HDPE pipe coils, manufactured by Al-Mona Factory, are engineered for reliable performance in water transportation networks, complying with ISO 4427-2. Crafted from high-density polyethylene (PE 80), they offer exceptional strength, durability, and resistance to corrosion and high temperatures, making them a dependable choice for demanding applications.
Key Features
- Outer diameter: 40 mm
- Standard dimension ratio (SDR): 9
- Material grade: PE 80
- Pressure rating: 16 bar
- Wall thickness: 4.5 mm
- Minimum required strength (MRS): 8 MPa
- Design stress (σs): 6.4 MPa
- Design safety factor: C = 1.25
- Color: Black
- Available in coils of 100 meters for sizes from 40 mm to 160 mm
Applications in the UAE
These pipes are well-suited for the UAE's infrastructure projects, including potable water distribution, irrigation systems for landscaping and agriculture, and sewage networks. Their ability to withstand harsh desert conditions and high ambient temperatures ensures long-lasting performance in both urban and rural settings across Dubai, Abu Dhabi, and Sharjah.
