HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 20 mm Thickness 2.3 mm Color Yellow | Almona Factory

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 20 mm Thickness 2.3 mm Color Yellow | Almona Factory

(5 Product Views)

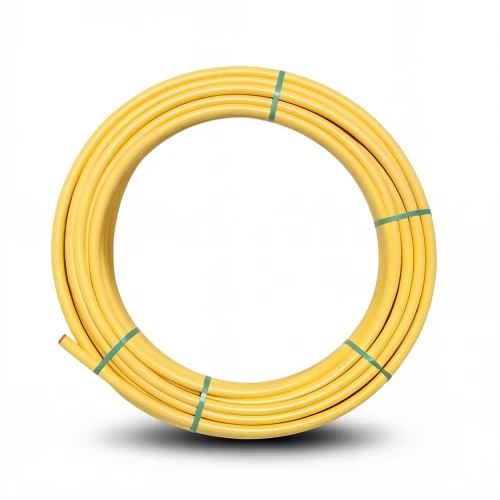

High-density polyethylene (HDPE) coil pipe, PE 80 grade, with a 4.8 bar pressure rating and 20 mm outside diameter. Manufactured by Almona Factory for reliable gas supply systems in the UAE.

in stock

Quantity

Call Now

Product description

This HDPE coil pipe from Almona Factory is engineered for gas supply networks, meeting the ISO 4437 standard. Its high-density polyethylene construction offers exceptional strength, durability, and resistance to high temperatures, pressure, and corrosion—ideal for the UAE's demanding climate.

With a PE 80 material grade and a nominal pressure of 4.8 bar (SDR 17.6), this pipe ensures safe and efficient gas distribution. The 20 mm outside diameter and 2.3 mm wall thickness provide a balanced flow capacity and structural integrity.

Key Features

Material: High-density polyethylene (HDPE), PE 80 grade
Pressure rating: 4.8 bar (SDR 17.6)
Outside diameter: 20 mm; wall thickness: 2.3 mm
Weight: 0.13 kg/m
Minimum Required Strength (MRS): 10 MPa; design stress: 5 MPa; safety factor C=2
Yellow color for easy identification
Available in coils of 100, 200, 300, up to 1500 meters (sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Applications in the UAE

Perfect for gas distribution lines in residential, commercial, and industrial projects across Dubai, Abu Dhabi, and Sharjah. Its corrosion resistance and long service life make it a cost-effective choice for the region's infrastructure.
