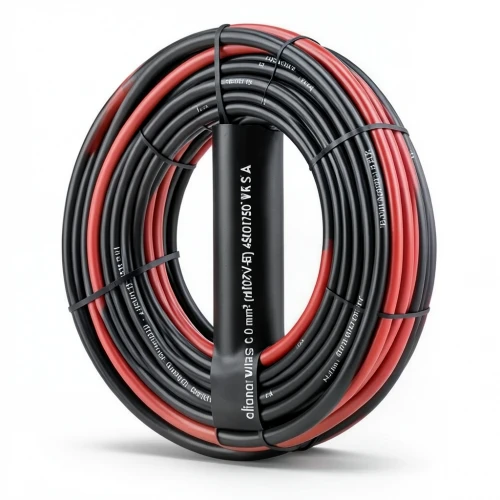

Stranded Electric Wire 450/750 Volts, Copper Conductor, PVC Insulation, 400mm2 Size, 100 Yards Length | Alfanar

This Alfanar stranded copper wire (CU/PVC) is engineered for reliable performance in the demanding climate of the United Arab Emirates. With a 400 mm² cross-section and robust PVC insulation rated for 70°C, it delivers consistent electrical conductivity and durable protection for fixed internal installations.

Manufactured to international standards including BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3, this cable is a trusted choice for electrical contractors and facility managers across Dubai, Abu Dhabi, and Sharjah. Its stranded conductor design offers flexibility, while the PVC insulation safeguards against current leakage, shocks, abrasion, moisture, and harmful UV rays—critical for the region's high temperatures and humidity.

Key Features

• Copper conductor, stranded for flexibility
• PVC insulation rated at 70°C
• Voltage rating: 450/750 volts
• Conductor size: 400 mm² (61 wires, 3.15 mm diameter)
• Max DC resistance at 20°C: 0.047 ohm/km
• Nominal insulation thickness: 2.6 mm; overall diameter: 28.3 mm
• Weight: 3745 kg/km
• Length: 100 yards per coil (other lengths on request)
• Brown phase core; meets BS, IEC, and GSO standards

Applications in the UAE

Ideal for wiring control panels, machinery, and instruments operating at elevated temperatures, as well as lighting networks and power systems in commercial, residential, and industrial projects throughout the Emirates.
