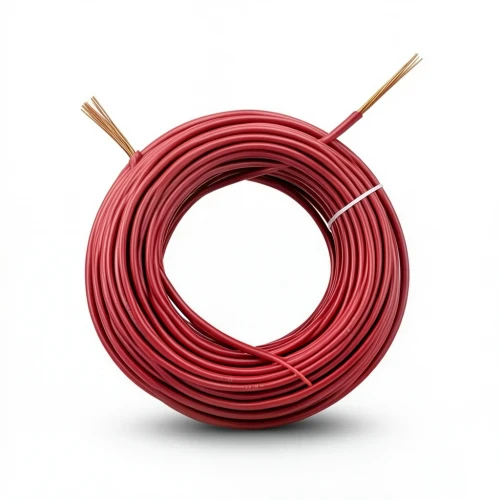

Stranded Copper Electric Wire, 2.5mm2 Cross Section, 450/750V, Insulated PVC, Red Color | Jeddah Cables
(5 Product Views)
Product description
This stranded copper electric wire (CU/PVC) from Jeddah Cables is engineered for reliable performance in demanding electrical installations. The soft annealed stranded copper conductor ensures excellent flexibility, making it easy to route through conduits and tight spaces—a key advantage for electricians working on projects in Dubai, Abu Dhabi, and Sharjah.
The PVC insulation provides robust protection against moisture, corrosion, and mechanical wear, which is essential in the UAE's humid coastal climate and dusty industrial environments. Rated at 450/750V, this wire is suitable for internal wiring of motors, transformers, lighting fixtures, and other electrical appliances.
Key Features
- Conductor: Soft annealed stranded copper for high conductivity and flexibility
- Insulation: PVC rated up to 85°C, resistant to water and corrosion
- Voltage rating: 450/750V
- Cross-sectional area: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Approx. overall diameter: 3.58 mm
- Weight: 32 kg/km
- Max DC resistance at 20°C: 7.41 ohm/km
- Current rating: 27 A (in conduit), 38 A (free air)
- Color: Red for easy phase identification
- Standard: IEC 60227
Whether you're wiring a new commercial tower in Dubai Marina or upgrading an industrial facility in Abu Dhabi, this wire delivers the durability and safety required for long-term performance. Its cost-effective PVC insulation offers excellent value without compromising on protection.
