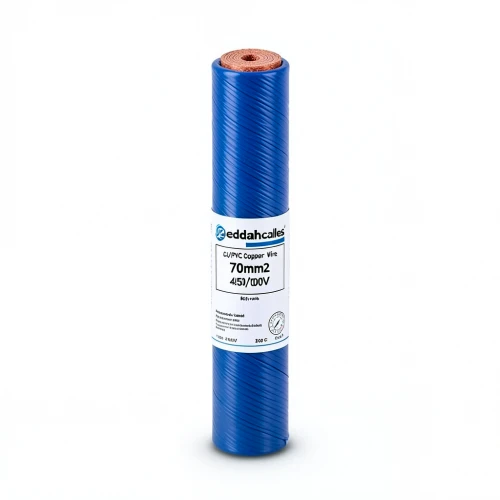

CU/PVC Stranded Copper Wire, 70mm2 Cross Section, 450/750 volts, Blue Color | Jeddah Cables
(29 Product Views)
Product description
This CU/PVC stranded copper wire, manufactured by Jeddah Cables, is a robust electrical conductor designed to meet the rigorous demands of the UAE's industrial and construction sectors. The 70mm² cross-section and 450/750V rating make it ideal for high-load applications, from powering heavy machinery in Dubai's factories to wiring large-scale infrastructure projects in Abu Dhabi.
The wire features a soft annealed stranded copper conductor, ensuring excellent flexibility and conductivity, while the PVC insulation provides superior protection against moisture, friction, and harsh environmental conditions—critical in the UAE's coastal and desert climates. This insulation not only prevents electrical leakage but also extends the wire's lifespan, reducing maintenance costs over time.
Key Features
- Conductor: Soft annealed stranded copper
- Insulation: PVC (rated 85°C) or LSHF
- Voltage rating: 450/750V
- Cross-section: 70mm²
- Nominal insulation thickness: 1.4mm
- Approx. overall diameter: 12.7mm
- Weight: 665 kg/km
- Max DC resistance at 20°C: 0.268 ohm/km
- Current rating (in conduits): 196A | (free air): 291A
- Color: Blue
- Standard: IEC 60227
This wire is suitable for internal wiring in electric motors, transformers, lighting systems, and other electrical appliances. Its durability and performance make it a trusted choice for contractors and engineers across the UAE, ensuring safe and reliable power distribution in residential, commercial, and industrial projects.
