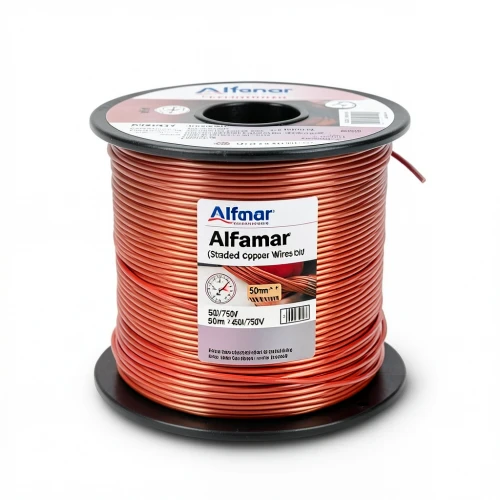

Copper Stranded Wire 50mm 450/750V, PVC Insulated | Alfanar

This Alfanar copper stranded wire (CU/PVC) is engineered for reliable performance in the UAE's demanding electrical installations. Manufactured to comply with British Standards (BS) and International Electrotechnical Commission (IEC) standards, it ensures safety and durability in both residential and commercial projects across Dubai, Abu Dhabi, and Sharjah.

The PVC insulation provides a robust protective layer that prevents current leakage, safeguards against shocks and abrasion, and resists corrosion, moisture, and UV radiation—critical for the region's hot and humid climate. The stranded copper conductor offers excellent flexibility and conductivity, making it easy to handle during installation.

Key Features

• Conductor: Stranded copper (19 wires, 1.86 mm diameter)
• Cross-sectional area: 50 mm²
• Voltage rating: 450/750V
• PVC insulation rated for 70°C
• Max DC resistance: 0.387 ohm/km at 20°C
• Nominal insulation thickness: 1.4 mm
• Approx. overall diameter: 10.9 mm
• Weight: 475 kg/km
• Color: Black
• Standards: BS EN 50525-2-31, IEC 60227-3, SASO-GSO-IEC 60227-3

Ideal for fixed internal installations, this wire is suitable for power circuits, lighting systems, building wiring, and internal connections of appliances and equipment. Available in various sizes to meet diverse project requirements across the UAE.
