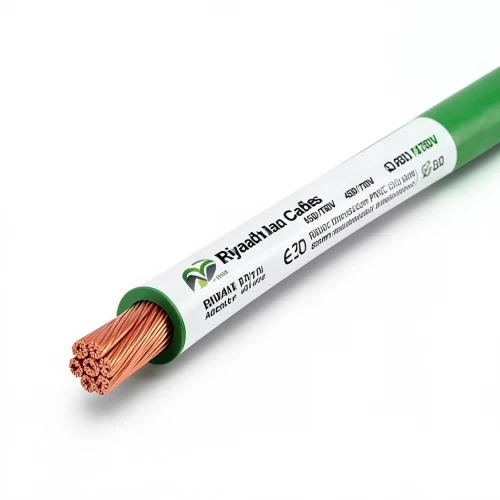

Copper Stranded Electric Wire 630 sq mm 450/750V, PVC Insulation, Green Color | Riyadh Cables
(6 Product Views)
High-quality 630 sq mm stranded copper wire with PVC insulation, rated 450/750V, in green. Manufactured by Riyadh Cables to international standards, ideal for fixed internal installations across the United Arab Emirates.
Product description
This copper stranded electrical wire (CU/PVC) from Riyadh Cables is engineered for reliable performance and long-lasting durability in demanding electrical installations. The PVC insulation provides excellent protection against electric current leakage, shocks, abrasion, and harmful UV rays, while also offering high resistance to water and moistureโessential for the UAE's humid coastal climate.
Designed for fixed internal installations, this wire is suitable for power circuits, lighting, building wiring, and internal wiring of equipment with rated voltages up to 1000V AC and 750V DC to earth. It meets international standards (SSA 1320, IEC 60227 & BS 6004), ensuring safety and quality for projects across Dubai, Abu Dhabi, and Sharjah.
Key Features
- Conductor: Copper, stranded (127/91 wires)
- Conductor size: 630 sq mm
- Voltage rating: 450/750V
- PVC insulation, green color
- Water and moisture resistant
- UV ray protection
- Conductor diameter: 32.76 mm
- Insulation thickness: 2.8 mm
- Approx. overall diameter: 41 mm
- Weight: 6050 kg/km
- Max DC resistance at 20ยฐC: 0.0283 ohm/km
- Length: 500m drum (ยฑ5%)
