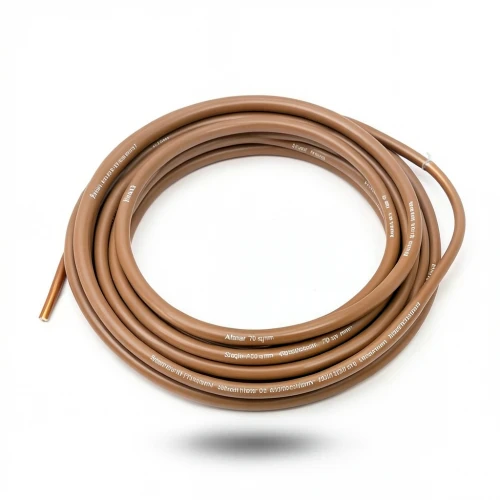

Alfanar 70 sq mm Single Electric Wire 450/750 Volts, Stranded Copper Conductor, Heat Resistant PVC Insulated 1.4mm Thick
(6 Product Views)
Product description
This Alfanar single electric wire features a stranded copper conductor, ensuring flexibility and reliable conductivity for demanding electrical installations. With a robust 1.4mm thick heat-resistant PVC insulation, it provides excellent protection against current leakage, shocks, and abrasion, making it a safe choice for both residential and commercial projects across the UAE.
Designed to withstand the harsh climate of the region, this wire is highly resistant to water, moisture, and harmful UV rays, ensuring long-lasting performance in Dubai's humid coastal areas or Abu Dhabi's intense sunlight. It meets the latest BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, guaranteeing compliance with international quality benchmarks.
Ideal for fixed internal installations, this wire is perfect for wiring control boards, machinery, instruments operating at higher temperatures, and lighting or power systems in commercial buildings, industrial facilities, and residential villas across the Emirates.
Key Features
- Stranded copper conductor (19 wires, 2.22mm diameter) for enhanced flexibility
- Heat-resistant PVC insulation (90ยฐC) with 1.4mm thickness
- Rated voltage: 450/750V
- Max DC resistance at 20ยฐC: 0.268 ohm/km
- Approx. overall diameter: 12.5mm; weight: 666 kg/km
- Supplied in 100-yard coils (other lengths available on request)
- Brown color; complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3
