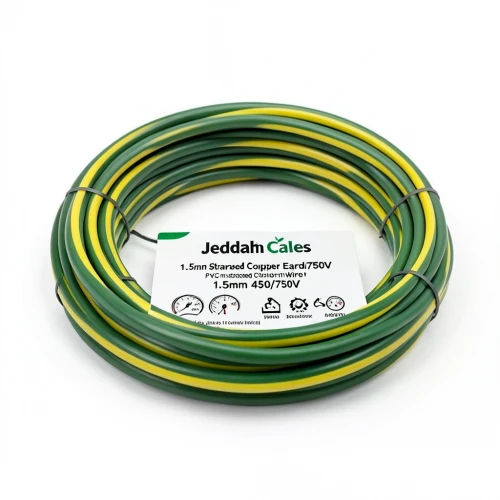

1.5mm Stranded Copper Earthing Wire 450/750V, Green/Yellow | Jeddah Cables
(8 Product Views)
Product description
This 1.5mm stranded copper earthing wire, rated at 450/750V, is manufactured by Jeddah Cables and designed to meet the rigorous safety standards required in the United Arab Emirates. The flexible copper conductor ensures easy handling and installation, even in tight spaces common in Dubai and Abu Dhabi construction projects.
The PVC insulation provides excellent resistance to moisture, which is particularly important in the UAE's humid coastal climate. It effectively prevents current leakage and protects the copper core from corrosion, ensuring long-term reliability and safety for both people and equipment.
Key Features
- Stranded copper conductor for flexibility and durability
- PVC insulation rated at 85ยฐC
- Voltage rating: 450/750V
- Conductor size: 1.5 mmยฒ
- Insulation thickness: 0.7 mm
- Overall diameter: 2.96 mm
- Weight: 20 kg/km
- Max DC resistance at 20ยฐC: 12.1 ohm/km
- Current rating (in conduits): 21A; (free air): 28A
- Green/Yellow color for easy identification
- Complies with IEC 60227
Applications in the UAE
Ideal for earthing systems in residential, commercial, and industrial projects across the Emirates, from villa developments in Dubai to high-rise towers in Abu Dhabi. Provides a safe path for fault currents, protecting against electric shocks and fire hazards.
