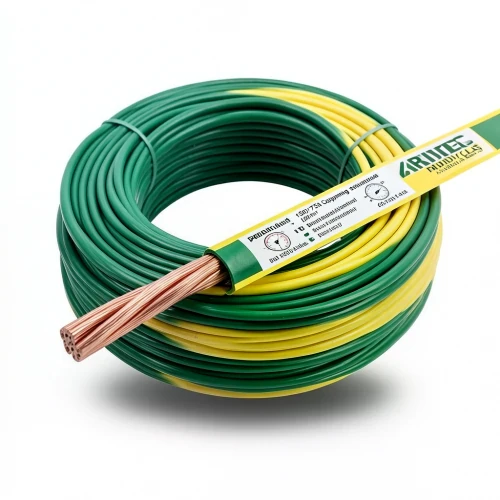

150 mm Stranded Copper Earthing Electrical Wire, 450/750 Rated Voltage, PVC Insulated, Green/Yellow | Riyadh Cables
(31 Product Views)
Product description
This 150 mm² stranded copper earthing wire, rated at 450/750 volts, is engineered for robust performance in demanding environments across the United Arab Emirates. Manufactured by Riyadh Cables, it meets international standards (SSA 1320, IEC 60227, BS 6004) to ensure safety and reliability in every installation.
The PVC insulation provides excellent protection against electrical leakage, abrasion, corrosion, and moisture, while also resisting harmful UV rays—critical for the UAE's intense sunlight and high humidity. The stranded copper conductor ensures flexibility and durability, making it suitable for fixed internal installations in power circuits, lighting, building wiring, and equipment internal wiring.
Key Features
- Conductor: Stranded copper (CU/PVC)
- Voltage rating: 450/750V
- Conductor size: 150 mm² (37 wires, 15.75 mm diameter)
- Insulation thickness: 1.8 mm; overall diameter: 20.9 mm
- Weight: 1540 kg/km; Max DC resistance: 0.124 ohm/km at 20°C
- Length: 2000m drum (±5%)
- Color: Yellow/Green (standard earthing)
- Standards: SSA 1320, IEC 60227, BS 6004
Ideal for use in commercial, residential, and industrial projects across Dubai, Abu Dhabi, and Sharjah, this earthing wire ensures safe and efficient grounding systems.
