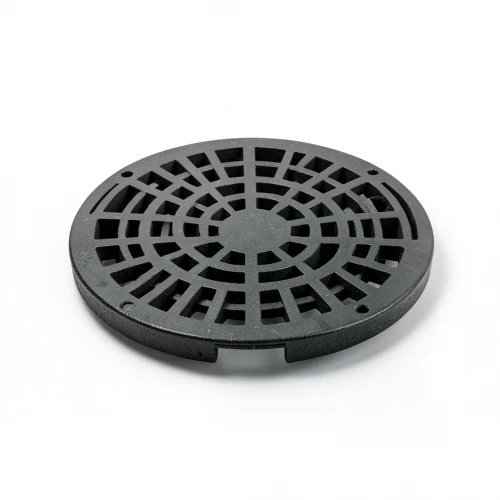

Round Cast Iron Grate GR-1032 (40 Ton Load Capacity)

The Round Grate GR-1032 is a robust cast iron drainage solution engineered to withstand extreme pressure and heavy vehicle traffic. With a verified load capacity of 40 tons, this grate is ideal for critical infrastructure points such as roadways, parking lots, and industrial zones where durability and safety are paramount.

Crafted from high-grade cast iron, the GR-1032 features a precise round design that ensures a secure fit within standard manhole frames. The structural integrity of the grate prevents deformation under heavy loads while maintaining an effective drainage flow, reducing the risk of water accumulation and potential slip hazards.

Key Features & Specifications

• Material: High-quality Cast Iron
• Load Capacity: 40 Ton
• Shape: Round
• Outer Diameter (Dimension E): 750 mm
• Opening Diameter (Dimension C): 600 mm
• Height (Dimension B): 50 mm

This grate is suitable for both new construction projects and maintenance replacements, offering long-term reliability with minimal upkeep.
