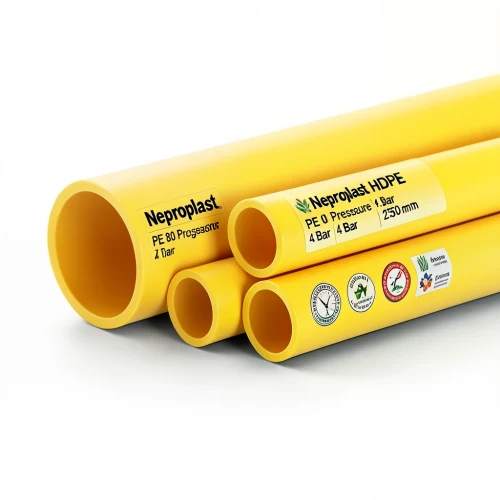

Neproplast HDPE Pipes PE 80 Pressure 4 Bar Outside Diameter 250 mm Thickness 7.7 mm Color Yellow
(32 Product Views)
Neproplast HDPE PE80 pipes, 250 mm OD, 4 bar pressure rating, yellow, designed for gas supply networks in Qatar.
in stock
Product description
Overview
Neproplast HDPE pipes are engineered for reliable gas supply transportation in Qatar's demanding infrastructure projects. Manufactured from high-density polyethylene (PE80), these pipes deliver exceptional strength, durability, and long-term performance in both above-ground and buried installations.
Key Features
- Pressure rating: 4 bar, suitable for low-pressure gas distribution systems
- Outside diameter: 250 mm with 7.7 mm wall thickness
- Standard Dimension Ratio (SDR) 33 for consistent performance
- Lightweight yet strong, simplifying handling and installation
- Resistant to bacteria, insects, heat, and UV radiation
- No painting required; easy to form and weld using electric fusion
Applications in Qatar
Ideal for gas supply networks in Doha, Al Rayyan, and Al Wakrah, these pipes meet the rigorous standards of local utility projects. Their corrosion resistance and durability make them a cost-effective choice for Qatar's hot climate and sandy soil conditions.
Specifications
- Length: Straight 12 meters; other lengths available on request
- Weight: 5.920 kg/m
- Color: Yellow (other colors available on request)
- Material: PE80
- Minimum Required Strength (MRS): 8
- Series (S): 16
- Sigma: 6.3
