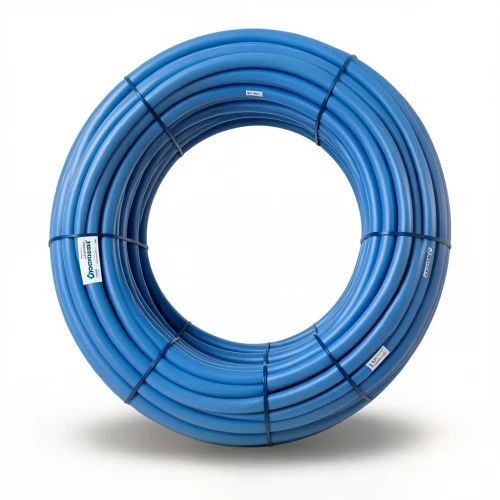

Neproplast HDPE Pipes PE 100 Pressure 20 Bar Outside Diameter 125 mm Thickness 14 mm Color Blue
(5 Product Views)
Neproplast HDPE PE100 pipes, 125 mm outside diameter and 14 mm wall thickness, rated for 20 bar pressure. Ideal for potable and agricultural water systems across Qatar.
in stock
Product description
Neproplast HDPE pipes are engineered for demanding water conveyance applications, delivering reliable performance in Qatar's challenging climate. Manufactured from high-density polyethylene (PE100), these pipes offer exceptional durability and long service life.
Key Features
- High pressure rating of 20 bar ensures safe operation in high-demand systems.
- Lightweight yet strong, simplifying handling and installation.
- Resistant to bacteria, insects, and corrosion, maintaining water purity.
- Excellent resistance to heat and UV radiation, ideal for outdoor installations in Qatar.
- No painting required, reducing maintenance costs.
- Can be easily formed and customized to project specifications.
- Secure and leak-proof connections via electric fusion welding.
Applications in Qatar
These pipes are widely used in Doha, Al Rayyan, and Al Wakrah for municipal potable water distribution, agricultural irrigation networks, and industrial water supply systems. Their robustness and chemical resistance make them suitable for both underground and above-ground installations.
Technical Specifications
- Outside Diameter: 125 mm
- Thickness: 14 mm
- Pressure Rating: 20 Bar
- Length: Available in rolls of 100 meters
- Material Weight: 4.870 kg/meter
- Color: Blue (other colors available on request)
- Material: PE100
- Standard Dimension Ratio (SDR): 9
- Sigma (ฯ): 8
- Minimum Required Strength (MRS): 10 MPa
- Series (S): 4
