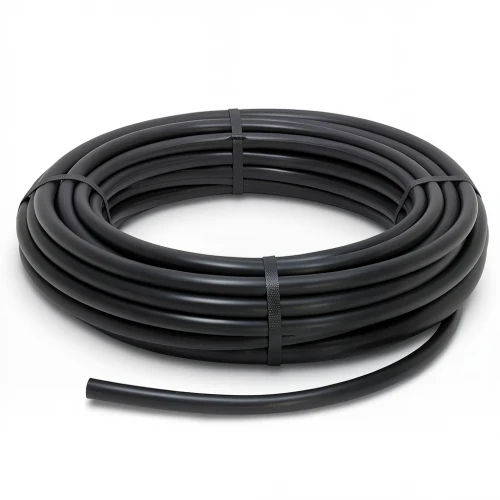

HDPE Polyethylene Plastic Coil Pipe Working Pressure 15.7 Bar [PE 63] Outer Diameter 32 mm SDR 6 Color Black | Almona Company

Al-Mona Company presents its premium HDPE (high-density polyethylene) coil pipes, engineered for superior performance in irrigation and water supply systems across Qatar. These pipes are manufactured to the highest standards, ensuring durability and reliability in demanding conditions, from the scorching heat of Doha to the coastal humidity of Al Wakrah.

With a working pressure of 15.7 bar and a standard dimensional ratio (SDR) of 6, these pipes are built to withstand high-pressure water networks, making them ideal for municipal, agricultural, and industrial applications. The PE 63 material grade provides excellent resistance to corrosion, chemicals, and environmental stress, ensuring a maintenance-free service life of up to 50 years.

Key Specifications

• Outer Diameter: 32 mm
• Wall Thickness: 5.4 mm
• Weight: 0.454 kg/m
• Standard Dimensional Ratio (SDR): 6
• Working Pressure: 15.7 bar
• Pipe Series (S): 2.5
• Material Grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design Stress (σs): 3.94 MPa
• Design Safety Factor: C=1.6
• Length: Available in coils of 100, 200, 300 up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufactured according to: DIN 8074/8075

These HDPE pipes are the perfect choice for efficient liquid transportation, offering exceptional durability and performance. They are easy to install, flexible, and resistant to external factors, making them a trusted solution for Qatar's growing infrastructure and agricultural projects.
