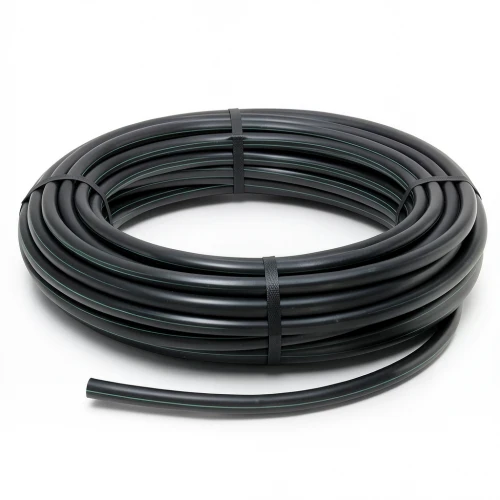

HDPE Polyethylene Plastic Coil Pipe Working Pressure 10 Bar [PE 80] Outer Diameter 125 mm SDR 13.6 Color Black | Almona Company

This HDPE (high-density polyethylene) coil pipe, manufactured by Al-Mona Company, is engineered for reliable liquid conveyance in demanding environments. With a working pressure of 10 bar and an outside diameter of 125 mm, it is well-suited for irrigation systems and water distribution networks across Qatar, where high ambient temperatures and sandy soil conditions test infrastructure durability.

The pipe is produced from PE 80 grade material, offering a minimum required strength (MRS) of 8 MPa and a design stress of 6.4 MPa, ensuring long-term performance. Its SDR 13.6 rating and 9.2 mm wall thickness provide excellent resistance to internal pressure and external loads. The black color enhances UV resistance, making it ideal for above-ground installations in the Qatari sun.

With a design safety factor of C=1.25 and a service life of up to 50 years with minimal maintenance, this pipe reduces operational costs and downtime. It is manufactured in accordance with DIN 8074/8075 standards, guaranteeing consistent quality.

Key features:

• Working pressure: 10 bar
• Outside diameter: 125 mm
• Wall thickness: 9.2 mm
• Material weight: 3.37 kg/m
• Standard dimensional ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 80
• Color: Black
• Minimum required strength (MRS): 8 MPa
• Design stress: 6.4 MPa
• Design safety factor: C=1.25
• Available in coils: 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufactured to DIN 8074/8075

Ideal for agricultural irrigation, landscaping, and municipal water supply projects in Doha, Al Rayyan, and Al Wakrah, this pipe offers a cost-effective and durable solution for Qatar's growing infrastructure needs.
