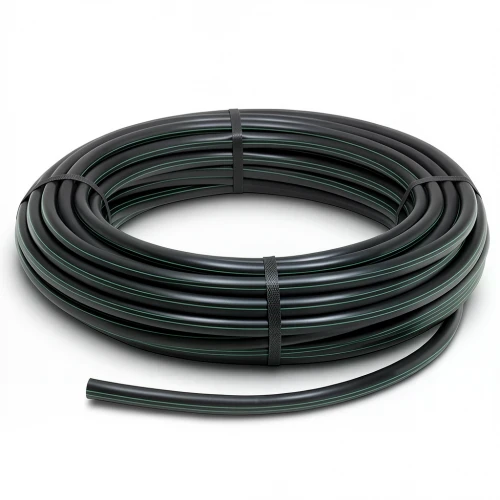

HDPE Polyethylene Plastic Coil Pipe Pressure 12.5 Bar [PE 80] Outer Diameter 160 mm SDR 11 Color Black | Almona Factory

This HDPE (high-density polyethylene) coil pipe from Al Mona Factory is an excellent choice for irrigation and water conveyance projects across Qatar. Manufactured to DIN 8074/8075 standards, it offers reliable performance under high pressure and harsh environmental conditions, making it ideal for the demanding climate of Doha, Al Rayyan, and Al Wakrah.

The pipe features a pressure rating of 12.5 bar, an outer diameter of 160 mm, and a wall thickness of 14.6 mm. With a material grade of PE 80 and an SDR 11 dimensional ratio, it ensures long-term durability and a service life of up to 50 years with minimal maintenance. This reduces operational costs and downtime, a key advantage for large-scale agricultural and municipal projects in Qatar.

Key Features

• Pressure rating: 12.5 bar
• Outer diameter: 160 mm; wall thickness: 14.6 mm
• Material: HDPE PE 80, SDR 11
• Minimum Required Strength (MRS): 8 MPa
• Design stress: 6.4 MPa; safety factor C=1.25
• Available in 100-meter coils (for sizes 40 mm to 160 mm)
• Manufactured according to DIN 8074/8075
• Black color for UV resistance

Whether for agricultural irrigation, landscaping, or water supply networks, this HDPE pipe delivers superior resistance to corrosion, abrasion, and chemical attack, ensuring a reliable and cost-effective solution for projects throughout Qatar.
