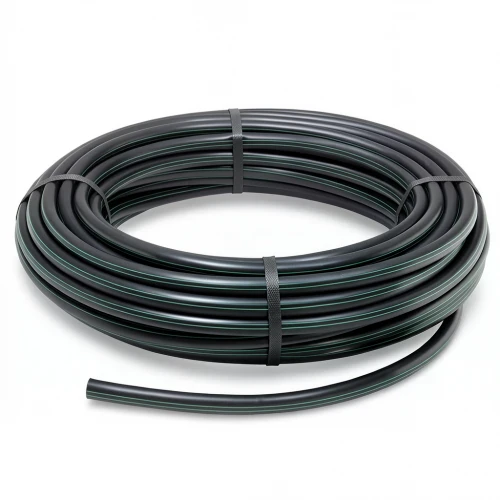

HDPE Polyethylene Plastic Coil Pipe PN 15.9 Bar [PE 63] Outside Diameter 90 mm SDR 7.4 Color Black | Almona Factory

This HDPE coil pipe, manufactured by Al Mona Factory, is engineered for efficient and reliable fluid conveyance in Qatar's demanding climate. Made from high-density polyethylene (PE 63), it offers exceptional durability, flexibility, and corrosion resistance, ensuring a long service life with minimal maintenance.

With a pressure rating of 15.9 bar and a standard dimensional ratio (SDR) of 7.4, this pipe is well-suited for high-pressure water networks, irrigation systems, and industrial applications across Doha, Al Rayyan, and Al Wakrah. Its lightweight nature simplifies handling and installation, reducing labor costs and project timelines.

Key Features

• Outside diameter: 90 mm
• Wall thickness: 12.3 mm
• Weight: 3.0 kg/m
• Pressure rating: 15.9 bar
• Pipe series (S): 3.2
• Material grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Manufactured per DIN 8074/8075

Available in coil lengths of 100, 200, 300 meters (up to 1500 meters) for sizes 16 mm to 32 mm, and 100-meter coils for sizes 40 mm to 160 mm. This pipe offers a maintenance-free lifespan of up to 50 years, making it a cost-effective and sustainable choice for Qatar's infrastructure projects.
