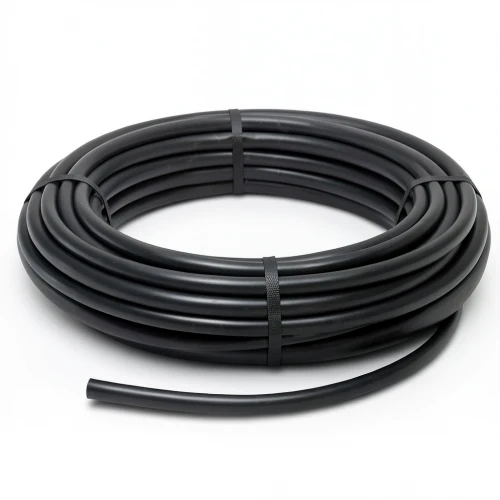

HDPE Polyethylene Coil Pipe PN 15.9 Bar [PE 63] OD 125 mm SDR 7.4 Color Black | Almona Company

Al-Mona's HDPE coil pipe is engineered for high-pressure water conveyance, making it a reliable choice for Qatar's demanding infrastructure projects, from municipal water supply to agricultural irrigation in Doha, Al Rayyan, and beyond. Crafted from high-density polyethylene (PE 63), this pipe offers exceptional durability, corrosion resistance, and a maintenance-free service life of up to 50 years.

With a pressure rating of 15.9 bar and an outside diameter of 125 mm, this coil pipe is designed to withstand high water pressures, ensuring efficient and safe fluid transport. Its black color provides UV protection, while its smooth interior minimizes friction and energy loss. Manufactured to DIN 8074/8075 standards, it meets rigorous quality requirements.

Key Features

• Outside diameter: 125 mm
• Wall thickness: 17.1 mm
• Weight: 5.77 kg/m
• Standard dimension ratio: SDR 7.4
• Pressure rating: 15.9 bar
• Pipe series (S): 3.2
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress: 5.04 MPa
• Design safety factor: C=1.25
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (sizes 16-32 mm); 100 m coils for sizes 40-160 mm
• Compliant with DIN 8074/8075

Ideal for water networks, irrigation systems, and industrial applications across Qatar, this HDPE pipe ensures long-term performance and low maintenance, even under harsh desert conditions.
