HDPE Polyethylene Coil Pipe Nominal Pressure 3.2 Bar [PE 100] OD 90 mm SDR 41 Color Black | Almona Factory

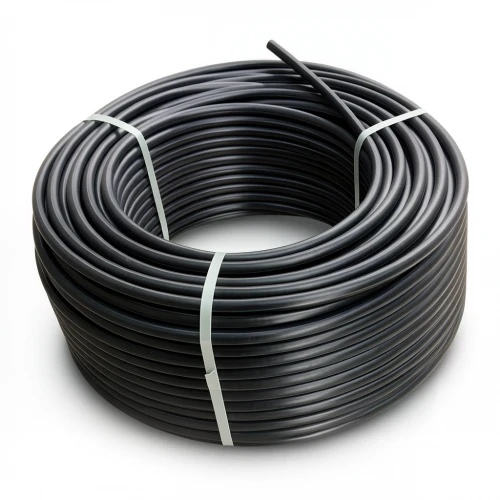

This black HDPE coil pipe from Al Mona Factory is engineered for reliable water transportation in Qatar's demanding environment. With a 90 mm outside diameter, SDR 41 rating, and a nominal pressure of 3.2 bar, it meets the DIN 8074/8075 standard, ensuring consistent quality and performance.

Manufactured from high-density polyethylene (PE 100), this pipe offers exceptional resistance to high water pressure and external factors, making it a durable choice for both potable water and irrigation networks. Its 50-year maintenance-free lifespan reduces long-term operational costs, a key advantage for infrastructure projects in Doha, Al Rayyan, and Al Wakrah.

Key Features

• Outside diameter: 90 mm
• Wall thickness: 2.2 mm
• Weight: 0.647 kg/m
• Standard dimensional ratio (SDR): 41
• Nominal pressure: 3.2 bar
• Pipe series (S): 20
• Material grade: PE 100
• Color: Black
• Minimum required strength (MRS): 10.0 MPa
• Design stress (σs): 6.25 MPa
• Design safety factor: C=1.6
• Length: Coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufactured according to: DIN 8074/8075

Ideal for water supply lines, irrigation systems, and industrial applications across Qatar, this HDPE pipe combines flexibility with strength, ensuring easy installation and long-term reliability in harsh desert conditions.
