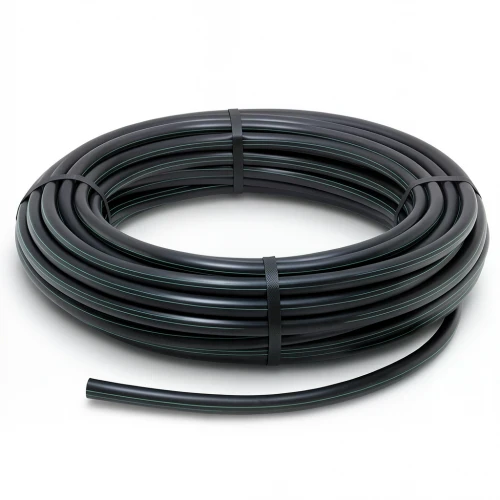

HDPE Polyethylene Coil Pipe Nominal Pressure 12.5 Bar [PE 80] OD 63 mm SDR 11 Color Black | Almona Factory

This HDPE coil pipe, manufactured by Al Mona Factory, is engineered for reliable performance in demanding water and irrigation systems. Made from high-density polyethylene (PE 80), it offers exceptional durability, resistance to corrosion, and a long service life of up to 50 years with minimal maintenance. Designed to handle high pressures up to 12.5 bar (SDR 11), this pipe is suitable for both potable water and agricultural applications.

Key Features

• Outside diameter: 63 mm
• Wall thickness: 5.8 mm
• Weight: 1.05 kg/m
• Standard dimensional ratio: SDR 11
• Nominal pressure: 12.5 bar
• Pipe series (S): 5
• Material grade: PE 80
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters (for sizes 16-32 mm) and 100-meter coils (for sizes 40-160 mm)
• Manufactured according to DIN 8074/8075

Applications in Qatar

Ideal for irrigation projects, municipal water supply, and industrial fluid transfer across Doha, Al Rayyan, and Al Wakrah. Its resistance to high temperatures and external factors makes it a dependable choice for Qatar's harsh climate and demanding construction standards.
