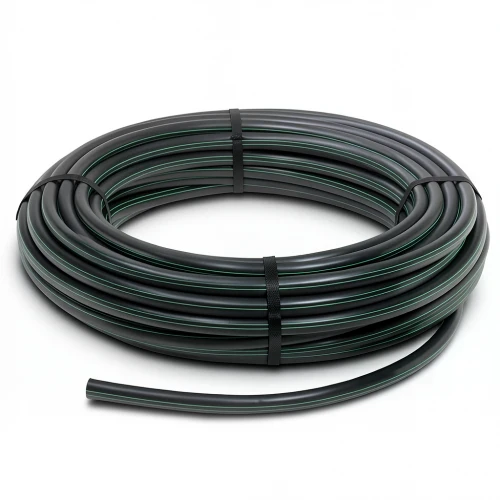

HDPE Polyethylene Coil Pipe Nominal Pressure 10 Bar [PE 63] OD 25 mm SDR 11 Color Black | Almona Factory

This HDPE coil pipe, produced by Al Mona Factory, is a reliable solution for efficient water conveyance in Qatar's demanding climate. Manufactured from high-density polyethylene (PE 63), it offers exceptional durability and long-term performance, making it a preferred choice for irrigation systems and water distribution networks across Doha, Al Rayyan, and Al Wakrah.

The pipe's robust construction allows it to withstand high water pressures, ensuring consistent flow even in demanding applications. With a minimum required strength (MRS) of 6.3 MPa and a design safety factor of C=1.25, it provides peace of mind for critical infrastructure. Its 50-year maintenance-free service life reduces operational costs and downtime, while its resistance to external factors ensures reliable operation in Qatar's harsh environment.

Key Specifications

• Outside diameter: 25 mm
• Wall thickness: 2.3 mm
• Material weight: 0.171 kg/m
• Standard dimensional ratio (SDR): 11
• Nominal pressure: 10 bar
• Pipe series (S): 5
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm
• Manufactured according to: DIN 8074/8075

Applications in Qatar

Ideal for agricultural irrigation, landscaping projects, and municipal water supply lines. Its flexibility and coil form facilitate easy installation in tight spaces and long runs, reducing the need for joints and fittings. Suitable for both above-ground and underground installations, it meets the high standards required for construction and infrastructure projects across Qatar.
