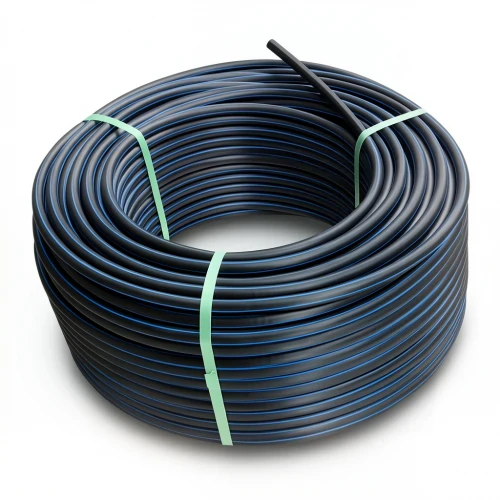

HDPE Polyethylene Coil Pipe Nominal Pressure 10 Bar [PE 100] OD 40 mm SDR 17 Color Black with Blue Stripes | Almona Factory

Overview

This HDPE coil pipe from Al-Mona Factory is engineered for reliable water transportation in demanding environments. Manufactured from high-density polyethylene (PE 100), it combines exceptional strength with long-term durability, making it a preferred choice for water networks across Qatar—from Doha's urban infrastructure to development projects in Al Rayyan and Al Wakrah.

Key Features

• Outside diameter: 40 mm
• Wall thickness: 2.4 mm
• Weight: 0.299 kg/m
• Standard dimension ratio (SDR): 17
• Nominal pressure: 10 bar
• Pipe series (S): 8
• Material grade: PE 100
• Color: Black with blue stripes
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Length: Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufactured to DIN 8074/8075

Applications in Qatar

Ideal for potable water distribution, irrigation systems, and industrial pipelines, this pipe withstands high pressures and offers a maintenance-free service life of up to 50 years. Its resistance to corrosion and external factors ensures dependable performance in Qatar's harsh climate, whether buried underground or laid above ground.
